COOLING SYSTEM LOCATION INDEX [MZR 1.3, MZR 1.5]

id0112c9800100

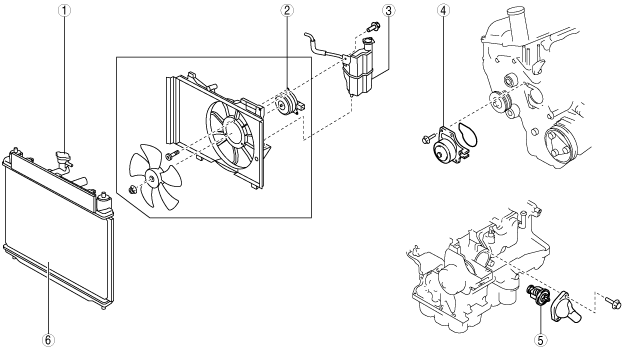

am2zzw00001689

1	Cooling system cap (See COOLING SYSTEM CAP INSPECTION [MZR 1.3, MZR 1.5].)
2	Cooling fan motor (See COOLING FAN MOTOR REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See COOLING FAN MOTOR INSPECTION [MZR 1.3, MZR 1.5].)
3	Coolant reserve tank (See ENGINE COOLANT LEVEL INSPECTION [MZR 1.3, MZR 1.5].) (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)
4	Water pump (See WATER PUMP REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)
5	Thermostat (See THERMOSTAT REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See THERMOSTAT INSPECTION [MZR 1.3, MZR 1.5].)
6	Radiator (See ENGINE COOLANT PROTECTION INSPECTION [MZR 1.3, MZR 1.5].) (See ENGINE COOLANT REPLACEMENT [MZR 1.3, MZR 1.5].) (See ENGINE COOLANT LEAKAGE INSPECTION [MZR 1.3, MZR 1.5].) (See RADIATOR REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)
