EGR VALVE REMOVAL/INSTALLATION [MZ-CD 1.6]

id011618801000

Note

•  If the EGR cooler with bypass valve and EGR valve is replaced, complete the “EXHAUST GAS RECIRCULATION VALVE LEARNED VALUES RESET”. (See EXHAUST GAS RECIRCULATION VALVE LEARNED VALUES RESET [MZ-CD 1.6].)

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

2.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [MZ-CD 1.6].)

3.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [MZ-CD 1.6].)

4.  Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

5.  Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

6.  Remove the cowl panel. (See COWL PANEL REMOVAL/INSTALLATION.)

7.  Remove the injection pipe (fuel injector side). (See COMMON RAIL REMOVAL/INSTALLATION [MZ-CD 1.6].)

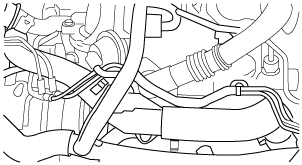

8.  Set the components shown in the figure out of the way.

am2zzw00006418

9.  Remove the EGR cooler with bypass valve and EGR valve.

am2zzw00006419

10.  Install in the reverse order of removal.
