COWL GRILLE REMOVAL/INSTALLATION

id091600444000

1.  Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION)

2.  Remove the front fender molding. (See FRONT FENDER PANEL REMOVAL/INSTALLATION)

3.  Disconnect the windshield washer hose and the connector.

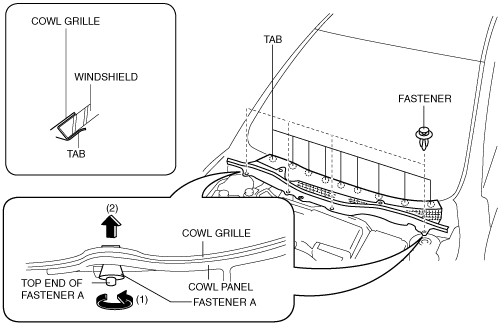

4.  Remove the fasteners.

am2zzw00003730

Note

•  A screwdriver or other tool cannot be used to remove fasteners from the vehicle body panel. Therefore, insert a hand into the back side of the cowl panel, rotate fasteners A in the direction of the arrow (1), and press them up in the direction of the arrow (2).

5.  Pull the cowl grille and remove it while detaching tabs.

6.  Install in the reverse order of removal.
