STARTER REMOVAL/INSTALLATION [MZ-CD 1.6]

id011924800200

Warning

•  Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.

•  When the battery cables are connected, touching the vehicle body with starter terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the negative battery cable before performing the following operation.

1.  Remove the battery. (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

2.  Remove the battery tray and PCM component as a single unit. (See PCM REMOVAL/INSTALLATION [MZ-CD 1.6].)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

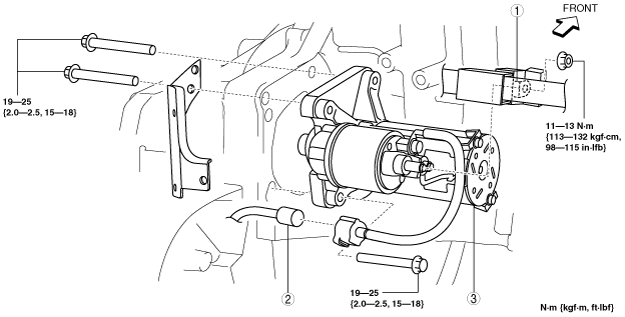

am2zzw00006462

1	Terminal B cable
2	Terminal S connector
3	Starter (See Starter Removal Note.)

Starter Removal Note

1.  Remove the two starter upper bolts from above the engine compartment.

2.  Remove the starter lower bolt and starter from below the engine compartment.
