KNOCK SENSOR (KS) REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5]


id0140e6802900

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)

2.  Remove the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)

3.  Disconnect the KS connector.

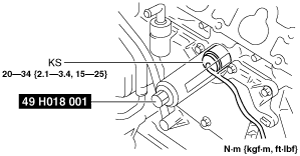

4.  Remove the KS using the SST.

am2zzw00006071

5.  Install in the reverse order of removal.
