HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5]

id0140e6804000

Warning

•  A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)

2.  Remove the air cleaner cover. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)

3.  Disconnect the HO2S connector.

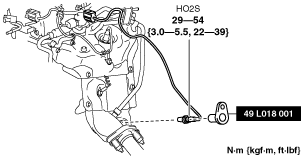

4.  Remove the HO2S using the SST.

am2zzw00006082

5.  Install in the reverse order of removal.
