CURRENT SENSOR REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5]

id0140e6805400

CVT

Note

•  The current sensor cannot be removed as a single unit. When replacing the current sensor, replace it together with the negative battery cable as a single unit.

1.  Remove the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)

With Current Sensor And MTX

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)

2.  Disconnect the current sensor connector.

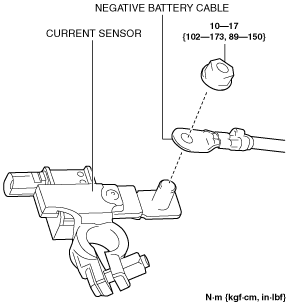

3.  Remove the current sensor.

am2zzw00006076

4.  Install in the reverse order of removal.
