BRAKE PEDAL POSITION (BPP) SWITCH INSPECTION [MZ-CD 1.6]

id0140e7807900

Caution

•  Inspect the BPP switch with it installed to the brake pedal, otherwise the BPP switch may not operate normally. If the BPP switch is removed from the brake pedal, replace the BPP switch with a new one.

Continuity Inspection

1.  Remove the lower panel.

2.  Remove the column cover.

3.  Disconnect the BPP switch connector.

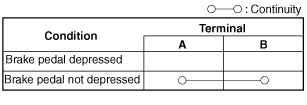

4.  Verify that the continuity between BPP switch terminals A and B is as indicated in the table.

•  If it is not as indicated in the table, replace the BPP switch. (See BRAKE PEDAL REMOVAL/INSTALLATION [MZ-CD 1.6].)

am2zzw00006330
