PARKING BRAKE LEVER ADJUSTMENT

id041200196500

Note

•  After pumping the brake pedal a few times, adjust the parking brake lever.

1.  Remove the console. (See REAR CONSOLE REMOVAL/INSTALLATION.)

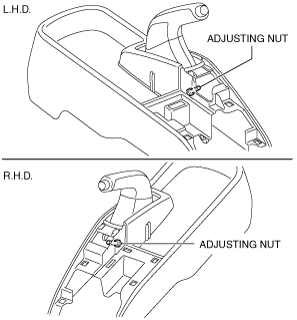

2.  Turn the adjusting nut as shown in the figure to adjust.

am2zzw00001256

3.  After adjustment, confirm the following points:

•  If there is any malfunction, inspect the parking brake lever again.

(1)  Pull the parking brake lever one notch and verify that the parking brake warning light illuminates.

(2)  Release the parking brake lever completely, and verify that the rear brakes do not drag.
