DSC HU/CM INSPECTION

id041500801100

1. Disconnect the DSC HU/CM connector. (See DSC HU/CM REMOVAL/INSTALLATION [L.H.D.].) (See DSC HU/CM REMOVAL/INSTALLATION [R.H.D.].)

2. Connect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

3. Attach the tester lead to the DSC HU/CM wiring harness-side connector and inspect the voltage, continuity, or resistance according to the standard (reference value) in the table below.

Standard (Reference)

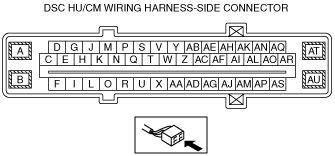

am2zzw00003959

Terminal

Signal name

Connected to

Measured item

Measured terminal (measurement condition)

Standard

Inspection item(s)

A

Ground

(system)

Ground point

Continuity

A—ground point

Continuity detected

•  Wiring harness
(A—ground point)

B

Ground

(ABS motor)

Ground point

Continuity

B—ground point

Continuity detected

•  Wiring harness
(B—ground point)

C

—

—

—

—

—

—

D

—

—

—

—

—

—

E

—

—

—

—

—

—

F

LF wheel-speed sensor (ground)

LF wheel-speed sensor

Continuity

F—LF ABS wheel-speed sensor terminal B

Continuity detected

•  Wiring harness (F—LF ABS wheel-speed sensor terminal B)

G

—

—

—

—

—

—

H

Sensor ground

Combined sensor

Continuity

H—combined sensor terminal D

Continuity detected

•  Wiring harness (H—combined sensor terminal D)

I

LF wheel-speed sensor (single)

LF ABS wheel-speed sensor

Continuity

I—LF ABS wheel-speed sensor terminal A

Continuity detected

•  Wiring harness (I—LF ABS wheel-speed sensor terminal A)

J

CAN_L

DLC-2 (CAN_L)

This terminal is used for communication and cannot be used for malfunction determination during terminal voltage inspection. Perform a DTC inspection.

K

—

—

—

—

—

—

L

—

—

—

—

—

—

M

CAN_H

DLC-2 (CAN_H)

This terminal is used for communication and cannot be used for malfunction determination during terminal voltage inspection. Perform a DTC inspection.

N

—

—

—

—

—

—

O

RR wheel-speed (signal)

RR ABS wheel-speed sensor

Continuity

O—RR ABS wheel-speed sensor terminal A

Continuity detected

•  Wiring harness (O—RR ABS wheel-speed sensor terminal A)

P

—

—

—

—

—

—

Q

—

—

—

—

—

—

R

RR wheel-speed (ground)

RR ABS wheel-speed sensor

Continuity

R—RR ABS wheel-speed sensor terminal B

Continuity detected

•  Wiring harness (R—RR ABS wheel-speed sensor terminal B)

S

—

—

—

—

—

—

T

—

—

—

—

—

—

U

—

—

—

—

—

—

V

—

—

—

—

—

—

W

—

—

—

—

—

—

X

—

—

—

—

—

—

Y

Power supply (system)

Ignition switch

Voltage

The ignition switch is at the ON position.

B+

•  Wiring harness (Y—ignition switch)

The ignition switch is off.

1 V or less

—

Z

—

—

—

—

—

—

AA

DSC OFF switch

DSC OFF switch

Continuity

AA—DSC OFF switch

Continuity detected

•  Wiring harness (AA—DSC OFF switch)

AB

—

—

—

—

—

—

AC

Sensor power supply

Combined sensor

Continuity

AC—combined sensor terminal A

Continuity detected

•  Wiring harness (AC—combined sensor terminal A)

AD

—

—

—

—

—

—

AE

—

—

—

—

—

—

AF

—

—

—

—

—

—

AG

LR wheel-speed (ground)

LR wheel-speed sensor

Continuity

AG—LR ABS wheel-speed sensor terminal B

Continuity detected

•  Wiring harness (AG—LR ABS wheel-speed sensor terminal B)

AH

—

—

—

—

—

—

AI

—

—

—

—

—

—

AJ

LR wheel-speed (signal)

LR ABS wheel-speed sensor

Continuity

AJ—LR ABS wheel-speed sensor terminal A

Continuity detected

•  Wiring harness (AJ—LR ABS wheel-speed sensor terminal A)

AK

—

—

—

—

—

—

AL

CAN2_L

Combined sensor

Continuity

AL—combined sensor terminal B

Continuity detected

•  Wiring harness (AL—combined sensor terminal B)

AM

—

—

—

—

—

—

AN

—

—

—

—

—

—

AO

CAN2_H

Combined sensor

Continuity

AO—combined sensor terminal C

Continuity detected

•  Wiring harness (AO—combined sensor terminal C)

AP

RF wheel-speed (signal)

RF ABS wheel-speed sensor

Continuity

AP—RF ABS wheel-speed sensor terminal A

Continuity detected

•  Wiring harness (AP—RF ABS wheel-speed sensor terminal A)

AQ

—

—

—

—

—

—

AR

—

—

—

—

—

—

AS

RF wheel-speed (ground)

RF ABS wheel-speed sensor

Continuity

AS—RF ABS wheel-speed sensor terminal B

Continuity detected

•  Wiring harness (AS—RF ABS wheel-speed sensor terminal B)

AT

Power supply

(ABS motor operation)

Battery

Voltage

Under any condition

B+

•  Wiring harness
(AT—battery)

AU

Power supply

(solenoid operation)

Battery

Voltage

Under any condition

B+

•  Wiring harness
(AU—battery)

Terminal	Signal name	Connected to	Measured item	Measured terminal (measurement condition)	Standard	Inspection item(s)
A	Ground (system)	Ground point	Continuity	A—ground point	Continuity detected	• Wiring harness (A—ground point)
B	Ground (ABS motor)	Ground point	Continuity	B—ground point	Continuity detected	• Wiring harness (B—ground point)
C	—	—	—	—	—	—
D	—	—	—	—	—	—
E	—	—	—	—	—	—
F	LF wheel-speed sensor (ground)	LF wheel-speed sensor	Continuity	F—LF ABS wheel-speed sensor terminal B	Continuity detected	• Wiring harness (F—LF ABS wheel-speed sensor terminal B)
G	—	—	—	—	—	—
H	Sensor ground	Combined sensor	Continuity	H—combined sensor terminal D	Continuity detected	• Wiring harness (H—combined sensor terminal D)
I	LF wheel-speed sensor (single)	LF ABS wheel-speed sensor	Continuity	I—LF ABS wheel-speed sensor terminal A	Continuity detected	• Wiring harness (I—LF ABS wheel-speed sensor terminal A)
J	CAN_L	DLC-2 (CAN_L)	This terminal is used for communication and cannot be used for malfunction determination during terminal voltage inspection. Perform a DTC inspection.
K	—	—	—	—	—	—
L	—	—	—	—	—	—
M	CAN_H	DLC-2 (CAN_H)	This terminal is used for communication and cannot be used for malfunction determination during terminal voltage inspection. Perform a DTC inspection.
N	—	—	—	—	—	—
O	RR wheel-speed (signal)	RR ABS wheel-speed sensor	Continuity	O—RR ABS wheel-speed sensor terminal A	Continuity detected	• Wiring harness (O—RR ABS wheel-speed sensor terminal A)
P	—	—	—	—	—	—
Q	—	—	—	—	—	—
R	RR wheel-speed (ground)	RR ABS wheel-speed sensor	Continuity	R—RR ABS wheel-speed sensor terminal B	Continuity detected	• Wiring harness (R—RR ABS wheel-speed sensor terminal B)
S	—	—	—	—	—	—
T	—	—	—	—	—	—
U	—	—	—	—	—	—
V	—	—	—	—	—	—
W	—	—	—	—	—	—
X	—	—	—	—	—	—
Y	Power supply (system)	Ignition switch	Voltage	The ignition switch is at the ON position.	B+	• Wiring harness (Y—ignition switch)
Y	Power supply (system)	Ignition switch	Voltage	The ignition switch is off.	1 V or less	—
Z	—	—	—	—	—	—
AA	DSC OFF switch	DSC OFF switch	Continuity	AA—DSC OFF switch	Continuity detected	• Wiring harness (AA—DSC OFF switch)
AB	—	—	—	—	—	—
AC	Sensor power supply	Combined sensor	Continuity	AC—combined sensor terminal A	Continuity detected	• Wiring harness (AC—combined sensor terminal A)
AD	—	—	—	—	—	—
AE	—	—	—	—	—	—
AF	—	—	—	—	—	—
AG	LR wheel-speed (ground)	LR wheel-speed sensor	Continuity	AG—LR ABS wheel-speed sensor terminal B	Continuity detected	• Wiring harness (AG—LR ABS wheel-speed sensor terminal B)
AH	—	—	—	—	—	—
AI	—	—	—	—	—	—
AJ	LR wheel-speed (signal)	LR ABS wheel-speed sensor	Continuity	AJ—LR ABS wheel-speed sensor terminal A	Continuity detected	• Wiring harness (AJ—LR ABS wheel-speed sensor terminal A)
AK	—	—	—	—	—	—
AL	CAN2_L	Combined sensor	Continuity	AL—combined sensor terminal B	Continuity detected	• Wiring harness (AL—combined sensor terminal B)
AM	—	—	—	—	—	—
AN	—	—	—	—	—	—
AO	CAN2_H	Combined sensor	Continuity	AO—combined sensor terminal C	Continuity detected	• Wiring harness (AO—combined sensor terminal C)
AP	RF wheel-speed (signal)	RF ABS wheel-speed sensor	Continuity	AP—RF ABS wheel-speed sensor terminal A	Continuity detected	• Wiring harness (AP—RF ABS wheel-speed sensor terminal A)
AQ	—	—	—	—	—	—
AR	—	—	—	—	—	—
AS	RF wheel-speed (ground)	RF ABS wheel-speed sensor	Continuity	AS—RF ABS wheel-speed sensor terminal B	Continuity detected	• Wiring harness (AS—RF ABS wheel-speed sensor terminal B)
AT	Power supply (ABS motor operation)	Battery	Voltage	Under any condition	B+	• Wiring harness (AT—battery)
AU	Power supply (solenoid operation)	Battery	Voltage	Under any condition	B+	• Wiring harness (AU—battery)
