OIL SEAL (DIFFERENTIAL) REPLACEMENT [B65M-R]

id0515h3800200

1.  Disconnect the drive shaft (LH) from the transaxle. (See DRIVE SHAFT REMOVAL/INSTALLATION [MZ-CD 1.6].)

2.  Disconnect the drive shaft (RH) from the joint shaft. (See DRIVE SHAFT REMOVAL/INSTALLATION [MZ-CD 1.6].)

3.  Remove the joint shaft. (See JOINT SHAFT REMOVAL/INSTALLATION [MZ-CD 1.6].)

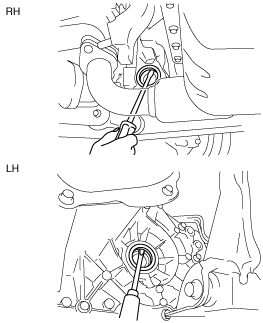

4.  Remove the oil seals using a screwdriver.

am2zzw00005646

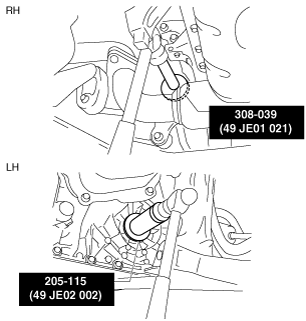

5.  Using the SST and a hammer, tap each new oil seal in evenly until the SST contacts the transaxle case.

am2zzw00005647

6.  Coat the lip of each oil seal with transaxle oil.

7.  Install the joint shaft. (See JOINT SHAFT REMOVAL/INSTALLATION [MZ-CD 1.6].)

8.  Install the drive shaft (RH) to the joint shaft. (See DRIVE SHAFT REMOVAL/INSTALLATION [MZ-CD 1.6].)

9.  Install the drive shaft (LH) to the transaxle. (See DRIVE SHAFT REMOVAL/INSTALLATION [MZ-CD 1.6].)
