TRANSAXLE RANGE (TR) SWITCH INSPECTION [DJVA-EL]

id051901285600

Caution

•  Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.

Operating Inspection

1.  Perform the following procedures to inspect the TR switch.

•  If there is any malfunction, adjust the TR switch. (See TRANSAXLE RANGE (TR) SWITCH ADJUSTMENT [DJVA-EL].)

(1)  Verify that the starter operates only when the ignition is switched to START with the selector lever in P or N position.

(2)  Verify that the back-up lights illuminate when selected to R position with the ignition at ON.

(3)  Verify that the positions of the selector lever and the selector indicator light are aligned.

On-Vehicle Inspection

1.  Disconnect the negative battery cable.

2.  Disconnect the TR switch connector.

am3zzw00008501

3.  Inspect continuity as indicated in the table.

am2zzw00004302

•  If there is any malfunction, adjust the TR switch. (See TRANSAXLE RANGE (TR) SWITCH ADJUSTMENT [DJVA-EL].)

am2zzw00004303

Wiring Harness Inspection

1.  Disconnect the negative battery cable.

2.  Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

3.  Remove the front side garnish. (See FRONT SIDE GARNISH REMOVAL/INSTALLATION.)

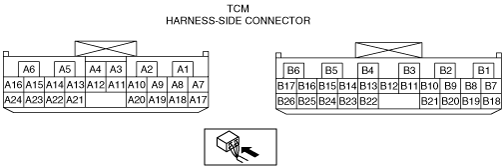

4.  Disconnect the TCM connector.

5.  Turn the ignition switch to the ON position.

6.  Inspect for continuity between TR switch and TCM using a tester.

•  If there is any malfunction, repair or replace the wiring harness.

am3zzw00008444
