OIL PRESSURE SENSOR REMOVAL/INSTALLATION [DJVA-EL]

id051901286100

Note

•  If the oil pressure sensor is replaced, perform oil pressure sensor learning on the replacement using the M-MDS (See TCM LEARNING [DJVA-EL].)

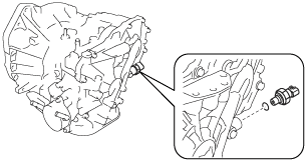

1.  Remove the oil pressure sensor.

(1)  Disconnect the negative battery cable.

(2)  Disconnect the oil pressure sensor connector.

(3)  Remove the oil presser sensor.

(4)  Remove the O-ring

adejjw00002813

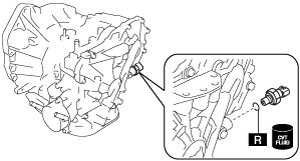

2.  Install the oil pressure sensor.

(1)  Coat a new O-ring with CVT fluid, and install it to the oil pressure sensor.

(2)  Install the oil pressure sensor.

adejjw00003178

Tightening torque

24—35 N·m {2.5—3.5 kgf·m, 18—25 ft·lbf}

(3)  Connect the oil pressure sensor connector.

3.  Connect the negative battery cable.
