CLOCK SPRING INSPECTION

id081000802200

1.  Switch the ignition to off.

2.  Disconnect the negative battery cable and wait for 1 min or more.

3.  Remove the following parts:

(1)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

(2)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [L.H.D.].) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)

(3)  Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(4)  Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION.)

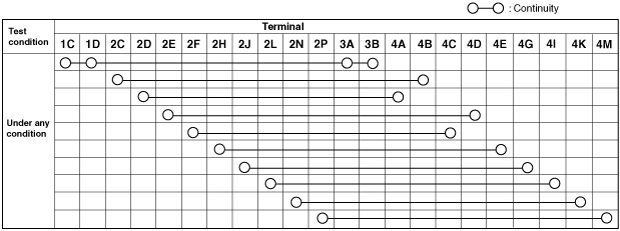

4.  Verify that the continuity is as indicated in the table.

•  If not as indicated in the table, replace the clock spring.

Note

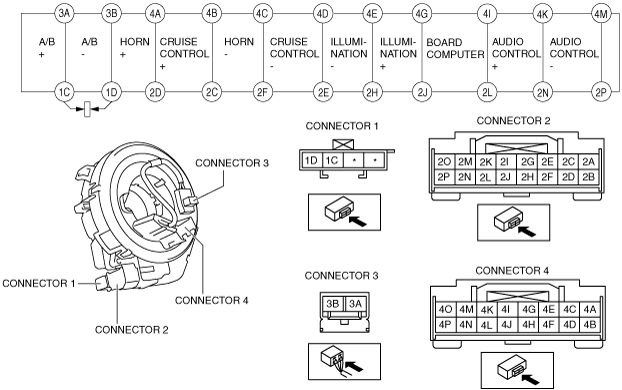

•  When the vehicle-side connector for the clock spring is disconnected, terminals 1C and 1D are shorted to prevent unexpected operation (deployment) of the air bag module.

am2zzw00000488

am2zzw00005606
