DTC B1178:11 [BCM]

id0902f5340900

Description

• Liftgate latch switch circuit malfunction

Detection Condition

• Short to ground in wiring harness between liftgate latch switch and BCM.

Possible Causes

• Liftgate latch and lock actuator connector or terminals malfunction

• Liftgate latch switch malfunction

• BCM connector or terminals malfunction

• Short to ground in wiring harness between liftgate latch and lock actuator terminal C and BCM terminal 7S

• BCM malfunction

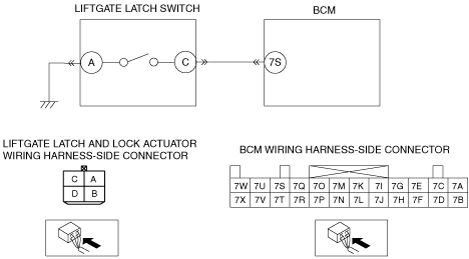

System Wiring Diagram

am2zzw00006128

Diagnostic Procedure

Step

Inspection

Action

1

VERIFY BCM DTCs

•  Clear the DTCs using the M-MDS.
(See CLEARING DTC [BCM].)

•  Perform the BCM DTC inspection using the M-MDS.
(See DTC INSPECTION [BCM].)

•  Is the same DTC present?

Yes

Go to the next step.

No

Go to Step 7.

2

INSPECT LIFTGATE LATCH AND LOCK ACTUATOR CONNECTOR AND TERMINALS

•  Turn the ignition switch to the LOCK position.

•  Disconnect the negative battery cable.

•  Disconnect the liftgate latch and lock actuator connector.

•  Inspect the connector and terminals (corrosion, damage, pin disconnection).

•  Is there any malfunction?

Yes

Repair or replace the connector or terminals, then go to Step 6.

No

Go to the next step.

3

INSPECT LIFTGATE LATCH SWITCH

•  Inspect the liftgate latch switch.
(See LIFTGATE LATCH SWITCH INSPECTION.)

•  Is there any malfunction?

Yes

Replace the liftgate latch and lock actuator, then go to Step 6.

(See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

No

Go to the next step.

4

INSPECT BCM CONNECTOR AND TERMINALS

•  Disconnect the BCM connector.

•  Inspect the connector and terminals (corrosion, damage, pin disconnection).

•  Is there any malfunction?

Yes

Repair or replace the connector or terminals, then go to Step 6.

No

Go to the next step.

5

INSPECT LIFTGATE LATCH SWITCH CIRCUIT FOR SHORT TO GROUND

•  Verify that the liftgate latch and lock actuator and BCM connectors are disconnected.

•  Inspect for continuity between liftgate latch and lock actuator terminal C (wiring harness-side) and body ground.

•  Is there continuity?

Yes

Repair or replace the wiring harness for a possible short to ground, then go to the next step.

No

Go to the next step.

6

VERIFY TROUBLESHOOTING COMPLETED

•  Make sure to reconnect all disconnected connectors.

•  Reconnect the negative battery cable.

•  Clear the DTCs using the M-MDS.
(See CLEARING DTC [BCM].)

•  Perform the BCM DTC inspection using the M-MDS.
(See DTC INSPECTION [BCM].)

•  Is the same DTC present?

Yes

Repeat the inspection from Step 1.

•  If the malfunction recurs, replace the BCM.
(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)

Go to the next step.

No

Go to the next step.

7

VERIFY THAT NO OTHER DTCs ARE PRESENT

•  Are any DTCs present?

Yes

Go to the applicable DTC inspection.

(See DTC TABLE [BCM].)

No

DTC troubleshooting completed.

Step	Inspection		Action
1	VERIFY BCM DTCs • Clear the DTCs using the M-MDS. (See CLEARING DTC [BCM].) • Perform the BCM DTC inspection using the M-MDS. (See DTC INSPECTION [BCM].) • Is the same DTC present?	Yes	Go to the next step.
1		No	Go to Step 7.
2	INSPECT LIFTGATE LATCH AND LOCK ACTUATOR CONNECTOR AND TERMINALS • Turn the ignition switch to the LOCK position. • Disconnect the negative battery cable. • Disconnect the liftgate latch and lock actuator connector. • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 6.
2		No	Go to the next step.
3	INSPECT LIFTGATE LATCH SWITCH • Inspect the liftgate latch switch. (See LIFTGATE LATCH SWITCH INSPECTION.) • Is there any malfunction?	Yes	Replace the liftgate latch and lock actuator, then go to Step 6. (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
3		No	Go to the next step.
4	INSPECT BCM CONNECTOR AND TERMINALS • Disconnect the BCM connector. • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 6.
4		No	Go to the next step.
5	INSPECT LIFTGATE LATCH SWITCH CIRCUIT FOR SHORT TO GROUND • Verify that the liftgate latch and lock actuator and BCM connectors are disconnected. • Inspect for continuity between liftgate latch and lock actuator terminal C (wiring harness-side) and body ground. • Is there continuity?	Yes	Repair or replace the wiring harness for a possible short to ground, then go to the next step.
5		No	Go to the next step.
6	VERIFY TROUBLESHOOTING COMPLETED • Make sure to reconnect all disconnected connectors. • Reconnect the negative battery cable. • Clear the DTCs using the M-MDS. (See CLEARING DTC [BCM].) • Perform the BCM DTC inspection using the M-MDS. (See DTC INSPECTION [BCM].) • Is the same DTC present?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the BCM. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.) Go to the next step.
6		No	Go to the next step.
7	VERIFY THAT NO OTHER DTCs ARE PRESENT • Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [BCM].)
7		No	DTC troubleshooting completed.
