DTC B1C53:13 [BCM]

id0902f5389100

Description

• Windshield wiper switch circuit malfunction

Detection Condition

• Open circuit in windshield wiper switch INT/AUTO circuit.

Possible Causes

• Wiper and washer switch connector or terminals malfunction

• Open circuit in wiring harness between the following:

― Wiper and washer switch left side

• Wiper and washer switch terminal C―Body ground

― Wiper and washer switch right side

• Wiper and washer switch terminal K―Body ground

• Windshield wiper switch malfunction

• BCM connector or terminals malfunction

• Open circuit in wiring harness between the following terminals:

― Wiper and washer switch left side

• Wiper and washer switch terminal E―BCM terminal 6S

― Wiper and washer switch right side

• Wiper and washer switch terminal I―BCM terminal 6S

• BCM malfunction

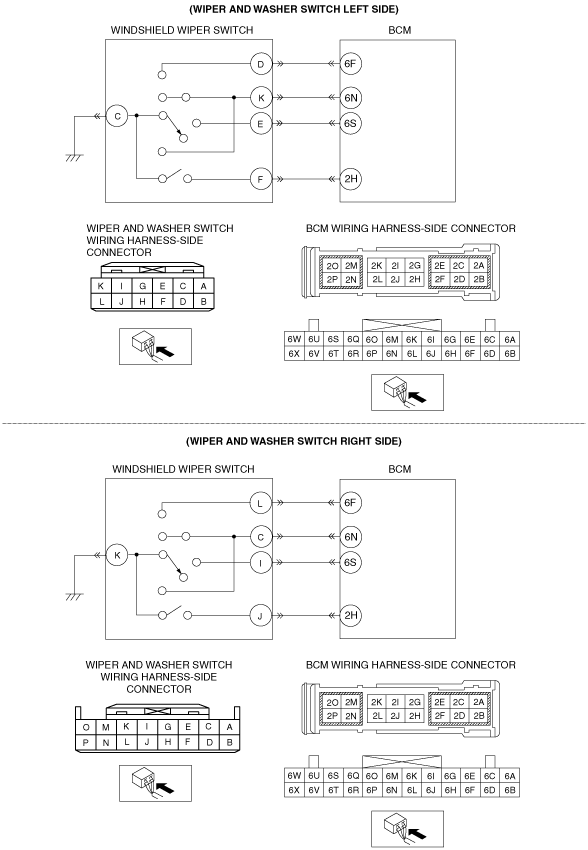

System Wiring Diagram

am2zzw00006131

Diagnostic Procedure

Step

Inspection

Action

1

VERIFY BCM DTCs

•  Clear the DTCs using the M-MDS.
(See CLEARING DTC [BCM].)

•  Turn the windshield wiper switch INT/AUTO.

•  Perform the BCM DTC inspection using the M-MDS.
(See DTC INSPECTION [BCM].)

•  Is the same DTC present?

Yes

Go to the next step.

No

Go to Step 8.

2

INSPECT WIPER AND WASHER SWITCH CONNECTOR AND TERMINALS

•  Turn the ignition switch to the LOCK position.

•  Disconnect the negative battery cable.

•  Disconnect the wiper and washer switch connector.

•  Inspect the connector and terminals (corrosion, damage, pin disconnection).

•  Is there any malfunction?

Yes

Repair or replace the connector or terminals, then go to Step 7.

No

Go to the next step.

3

INSPECT WINDSHIELD WIPER SWITCH GROUND CIRCUIT FOR OPEN CIRCUIT

•  Verify that the wiper and washer switch connector is disconnected.

•  Inspect for continuity between the following terminal (wiring harness-side) and body ground:

―  Wiper and washer switch left side

•  Wiper and washer switch terminal C

―  Wiper and washer switch right side

•  Wiper and washer switch terminal K

•  Is there continuity?

Yes

Go to the next step.

No

Repair or replace the wiring harness for a possible open circuit, then go to Step 7.

4

INSPECT WINDSHIELD WIPER SWITCH

•  Inspect the windshield wiper switch.
(See WINDSHIELD WIPER AND WASHER SWITCH INSPECTION.)

•  Is there any malfunction?

Yes

Replace the wiper and washer switch, then go to Step 7.

(See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

No

Go to the next step.

5

INSPECT BCM CONNECTOR AND TERMINALS

•  Disconnect the BCM connector.

•  Inspect the connector and terminals (corrosion, damage, pin disconnection).

•  Is there any malfunction?

Yes

Repair or replace the connector or terminals, then go to Step 7.

No

Go to the next step.

6

INSPECT WINDSHIELD WIPER SWITCH CIRCUIT FOR OPEN CIRCUIT

•  Verify that the wiper and washer switch and BCM connectors are disconnected.

•  Inspect for continuity between the following terminals (wiring harness-side):

―  Wiper and washer switch left side

•  Wiper and washer switch terminal E―BCM terminal 6S

―  Wiper and washer switch right side

•  Wiper and washer switch terminal I―BCM terminal 6S

•  Is there continuity?

Yes

Go to the next step.

No

Repair or replace the wiring harness for a possible open circuit, then go to the next step.

7

VERIFY TROUBLESHOOTING COMPLETED

•  Make sure to reconnect all disconnected connectors.

•  Reconnect the negative battery cable.

•  Clear the DTCs using the M-MDS.
(See CLEARING DTC [BCM].)

•  Turn the windshield wiper switch INT/AUTO.

•  Perform the BCM DTC inspection using the M-MDS.
(See DTC INSPECTION [BCM].)

•  Is the same DTC present?

Yes

Repeat the inspection from Step 1.

•  If the malfunction recurs, replace the BCM.
(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)

Go to the next step.

No

Go to the next step.

8

VERIFY THAT NO OTHER DTCs ARE PRESENT

•  Are any DTCs present?

Yes

Go to the applicable DTC inspection.

(See DTC TABLE [BCM].)

No

DTC troubleshooting completed.

Step	Inspection		Action
1	VERIFY BCM DTCs • Clear the DTCs using the M-MDS. (See CLEARING DTC [BCM].) • Turn the windshield wiper switch INT/AUTO. • Perform the BCM DTC inspection using the M-MDS. (See DTC INSPECTION [BCM].) • Is the same DTC present?	Yes	Go to the next step.
1		No	Go to Step 8.
2	INSPECT WIPER AND WASHER SWITCH CONNECTOR AND TERMINALS • Turn the ignition switch to the LOCK position. • Disconnect the negative battery cable. • Disconnect the wiper and washer switch connector. • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 7.
2		No	Go to the next step.
3	INSPECT WINDSHIELD WIPER SWITCH GROUND CIRCUIT FOR OPEN CIRCUIT • Verify that the wiper and washer switch connector is disconnected. • Inspect for continuity between the following terminal (wiring harness-side) and body ground: ― Wiper and washer switch left side • Wiper and washer switch terminal C ― Wiper and washer switch right side • Wiper and washer switch terminal K • Is there continuity?	Yes	Go to the next step.
3		No	Repair or replace the wiring harness for a possible open circuit, then go to Step 7.
4	INSPECT WINDSHIELD WIPER SWITCH • Inspect the windshield wiper switch. (See WINDSHIELD WIPER AND WASHER SWITCH INSPECTION.) • Is there any malfunction?	Yes	Replace the wiper and washer switch, then go to Step 7. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)
4		No	Go to the next step.
5	INSPECT BCM CONNECTOR AND TERMINALS • Disconnect the BCM connector. • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 7.
5		No	Go to the next step.
6	INSPECT WINDSHIELD WIPER SWITCH CIRCUIT FOR OPEN CIRCUIT • Verify that the wiper and washer switch and BCM connectors are disconnected. • Inspect for continuity between the following terminals (wiring harness-side): ― Wiper and washer switch left side • Wiper and washer switch terminal E―BCM terminal 6S ― Wiper and washer switch right side • Wiper and washer switch terminal I―BCM terminal 6S • Is there continuity?	Yes	Go to the next step.
6		No	Repair or replace the wiring harness for a possible open circuit, then go to the next step.
7	VERIFY TROUBLESHOOTING COMPLETED • Make sure to reconnect all disconnected connectors. • Reconnect the negative battery cable. • Clear the DTCs using the M-MDS. (See CLEARING DTC [BCM].) • Turn the windshield wiper switch INT/AUTO. • Perform the BCM DTC inspection using the M-MDS. (See DTC INSPECTION [BCM].) • Is the same DTC present?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the BCM. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.) Go to the next step.
7		No	Go to the next step.
8	VERIFY THAT NO OTHER DTCs ARE PRESENT • Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [BCM].)
8		No	DTC troubleshooting completed.
