WINDSHIELD WIPER AND WASHER SWITCH INSPECTION

id091900910400

1.  Disconnect the negative battery cable.

2.  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

3.  Remove the wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

4.  Verify that the resistance and continuity between the windshield wiper and washer switch terminals as indicated in the table.

•  If the continuity is not as indicated in the table, or if the resistance is not within the specification, replace the windshield wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

Vehicles With Wiper And Washer Switch On Left Side

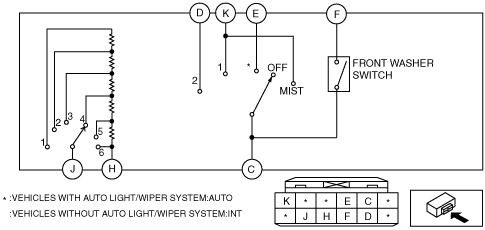

am2zzw00005490

am2zzw00005939

am2zzw00005491

Vehicles With Wiper And Washer Switch On Right Side

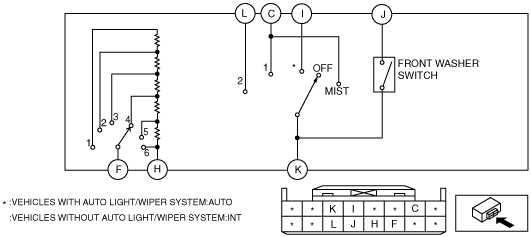

am2zzw00006263

am2zzw00005940

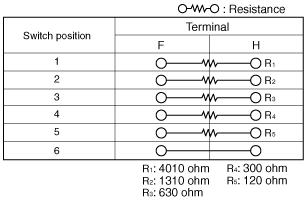

am2zzw00005492
