BONNET ADJUSTMENT


id091000407300


Gap Adjustment

1.  Measure the gap between the bonnet and body.

am2uuw00000678

Standard clearance
a:2.9―6.1 mm {0.12―0.24 in}
b:3.0―6.0 mm {0.12―0.23 in}
c:-1.0―1.0 mm {-0.039―0.039 in}
d:2.5―4.5 mm {0.10―0.17 in}
e:3.0―6.0 mm {0.12―0.23 in}
f:-1.0―1.0 mm {-0.039―0.039 in}

2.  Remove the front fender molding. (See FRONT FENDER PANEL REMOVAL/INSTALLATION.)

3.  Loosen the bonnet hinge installation bolts and adjust the gap by moving the bonnet hinge back and forth, left and right.

am2zzw00001598

4.  Tighten the bolts. (See BONNET REMOVAL/INSTALLATION.)

5.  Install the front fender molding. (See FRONT FENDER PANEL REMOVAL/INSTALLATION.)


Height Difference Adjustment

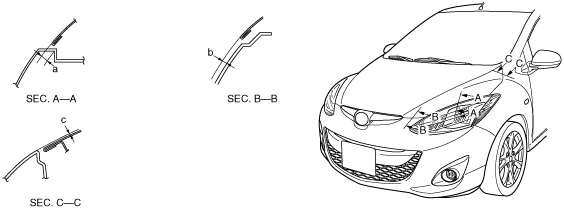

1.  Measure the height difference between the bonnet and body.

am2uuw00000679

Standard clearance
a:1.9―4.5mm {0.08―0.17 in}
b:0.8―3.7mm {0.04―0.14 in}
c:-1.0―0.5mm {-0.03―0.01 in}

2.  Turn the stop rubber to adjust.

am2uuw00001070
