FRONT FENDER PANEL REMOVAL/INSTALLATION

id091000405900

1.  Disconnect the negative battery cable.

2.  Remove the sail garnish. (See SAIL GARNISH REMOVAL/INSTALLATION)

3.  Remove the front side turn lights. (See SIDE TURN LIGHT REMOVAL/INSTALLATION)

4.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION)

5.  Remove the front combination lights. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION)

6.  Remove the side step molding. (vehicles with side step molding) (See SIDE STEP MOLDING REMOVAL) (See SIDE STEP MOLDING INSTALLATION)

7.  Remove fastener A, then remove the front fender molding in the direction of the arrow shown in the figure.

am2zzw00001618

8.  Remove bolt B and clip C, then remove the front bumper slider.

am2zzw00003469

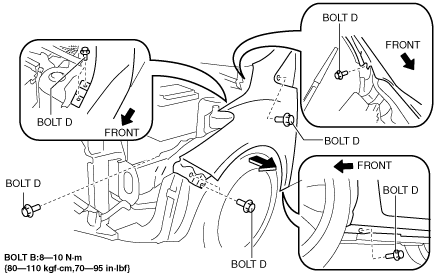

9.  Remove bolts D, then remove the front fender panel in the direction of the arrow shown in the figure.

am2zzw00003470

10.  Install in the reverse order of removal.

11.  Adjust the headlight aiming. (See HEADLIGHT AIMING)
