REAR DOOR MODULE PANEL REMOVAL/INSTALLATION

id091100823500

1.  To access the glass installation bolt, position the rear door glass so that the distance from the top of the rear door glass to the upper part of the rear beltline molding is approx. 210 mm {8.27 in}.

am2zzw00000414

2.  Disconnect the negative battery cable.

3.  Remove the following parts:

(1)  Sail inner garnish (See SAIL INNER GARNISH REMOVAL/INSTALLATION.)

(2)  Rear door garnish (See REAR DOOR GARNISH REMOVAL/INSTALLATION.)

(3)  Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

(4)  Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION [5HB].)

(5)  Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION.)

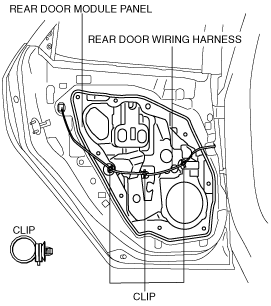

4.  Remove the clips securing the rear door wiring harness from the rear door module panel.

am2zzw00006038

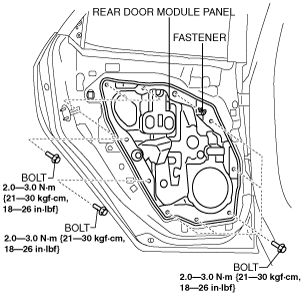

5.  Remove the bolts.

am2zzw00000416

6.  Remove the fastener.

7.  Remove the rear door module panel.

8.  Remove the rear power window motor. (See POWER WINDOW MOTOR REMOVAL/INSTALLATION.)

9.  Remove the rear power window regulator. (See REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION.)

10.  Install in the reverse order of removal.
