FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION

id091200414700

1.  To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 110 mm {4.33 in}.

am2zzw00005724

2.  Disconnect the negative battery cable.

3.  Remove the following parts:

(1)  Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(2)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(3)  Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

(4)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

(5)  Front power window motor (See POWER WINDOW MOTOR REMOVAL/INSTALLATION.)

4.  Remove the nuts.

am2zzw00005725

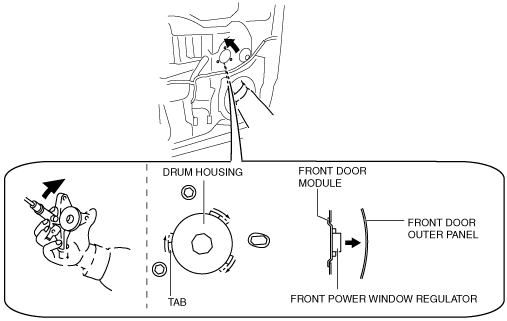

5.  Insert a hand through the front door speaker installation hole and rotate the drum housing in the direction of the arrow shown in the figure to detach the tabs from the front door unit.

am2zzw00005726

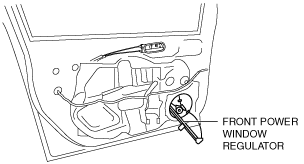

6.  Remove the front power window regulator from the speaker installation hole.

am2zzw00005727

7.  Install in the reverse order of removal.

Caution

•  When installing, do not allow the cable to come out from the drum housing.
