REAR SEAT BACK FRAME REMOVAL/INSTALLATION

id091300450000

1.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

2.  Remove the rear buckle installation bolt. (See REAR BUCKLE REMOVAL/INSTALLATION.)

3.  Remove the rear seat back. (See REAR SEAT BACK REMOVAL/INSTALLATION.)

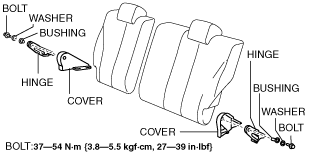

4.  Remove the bolt, then remove the bushing, washer, hinge, and the cover.

am2zzw00006254

5.  Remove the child-restraint seat anchor covers.

adejjw00003478

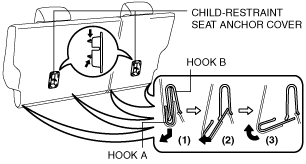

6.  Slide hooks A in the order of (1), (2), (3) shown in the figure to detach them from hooks B.

7.  Move the hooks in the direction of the arrow shown in the figure to remove them from the frame.

am2zzw00002209

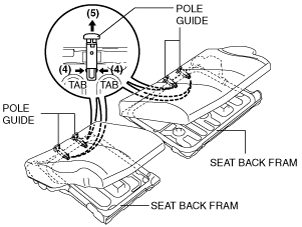

8.  Peal back the rear seat trim, release the pole guide tabs in the direction of arrow (4) shown in the figure, then pull out the pole guides in the direction of arrow (5).

am2zzw00002210

9.  Release the tab of the rod by pulling it in the direction of arrow (6) shown in the figure.

am2zzw00003775

10.  Release the rod from the frame by pulling it in the direction of arrow (7) shown in the figure.

11.  While releasing the tabs of the bezel in the direction of arrow (8) shown in the figure, remove the bezel, recliner knob, and rod as a single unit by pulling them in the direction of arrow (9).

am2zzw00003776

12.  While releasing the tabs of the recliner knob in the direction of arrow (10) shown in the figure, pull the recliner knob in the direction of arrow (11) to disassemble the recliner knob, bezel, and the rod.

am2zzw00002212

13.   Remove the screws, then remove the belt cover.

am2zzw00000590

14.  Remove the seat back frame from the seat back pad by pulling it in the direction of the arrow.

am2zzw00003777

15.  Remove the bolt, then remove the rear center seat belt.

am2zzw00000591

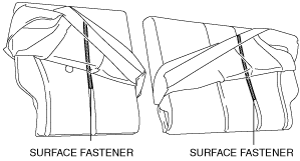

16.  Remove the seat back trim from the seat back pad by peeling off the surface fastener while opening the seat back trim.

adejjw00001886

17.  Install in the reverse order of removal.
