FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION

id091300487800

1.  Turn the ignition switch to the LOCK position.

2.  Disconnect the negative battery cable and wait 1 min or more. (Vehicles with side air bags)

3.  Disconnect the negative battery cable.(Vehicles without side air bags)

4.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

5.  Remove the front seat side cover. (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION.)

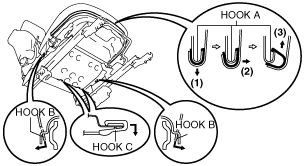

6.  Detach hook A by sliding it in the order of (1), (2), and (3) as shown in the figure.

am2zzw00002466

7.  Detach hook B and C in the direction of the arrow shown in the figure.

8.  Remove the seat cushion trim and the seat cushion pad from the seat frame as a single unit.

am2zzw00002467

9.  Remove rings C in the order of (4), (5), and (6) as shown in the figure, then remove the seat cushion trim from the seat cushion pad in the direction of the arrow shown in the figure.

am2zzw00003759

10.  Install in the reverse order of removal.
