IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [ADVANCED KEYLESS AND START SYSTEM]

id0914004419b0


Foreword

•  When replacing immobilizer system-related parts or programming an additional key, program the immobilizer system-related parts so that the system operates normally. For immobilizer system-related parts programming, Select programming procedures according to the service. (See Selection of Procedure for Immobilizer System-Related Parts Programming.)
Caution
•  If any metallic or magnetic object is near the key, communication between the key and the vehicle may be obstructed, resulting in a failure to program the immobilizer system-related parts. Remove any metallic or magnetic objects, such as key holders, from the key when programming immobilizer system-related parts.
•  If any of the following devices are inside the vehicle, programming of immobilizer system-related parts may fail. Do not bring any of the following devices or similar products inside the vehicle when programming immobilizer system-related parts.
―  Advanced key
―  M-MDS
―  Personal computer
―  Devices that can send/receive radio waves
•  If the engine is started during immobilizer system-related parts programming, the programming mode cancels. Therefore, do not start the engine unless indicated in the procedure. Repeat the procedure from the beginning if the engine is started during the immobilizer system-related parts programming.
•  If an advanced key is near the vehicle during immobilizer system-related parts programming, it may be programmed mistakenly. Keep advanced keys 1 m away from the vehicle unless indicated in the procedure.
Note
•  The “Valid key” or “Valid advanced key” referred to in this manual indicates the key that can start the engine.
•  Two or more key ID numbers must be programmed for the engine to start.
•  A maximum of eight key ID numbers can be programmed for one vehicle.
•  The number of programmed key ID numbers can be verified using the M-MDS.
•  Do not select any screen menu other than the ones indicated in the procedure during M-MDS operation.

Selection of Procedure for Immobilizer System-Related Parts Programming

1.  Verify that the room fuse is equipped.

2.  Select applicable programming procedure from the service content of the immobilizer system-related parts.

Immobilizer System-Related Parts Service and Programming Procedure Table

No.

Service

Programming procedure
1
Additional key programming
Have two or more valid keys
(See No.1 Additional Key Programming Procedure (Using Two Valid Keys).)
2
Have one valid key or valid advanced key
(See No. 2 Additional Key Programming Procedure (Using the M-MDS).)
3
Additional key programming procedure setting
Disable programming using valid keys
(See No.3 Additional Key Programming Procedure Changing.)
Enable programming using valid keys
4
Programming due to PCM replacement
(See No.4 Programming Procedure Due to PCM Replacement.)
5
Programming due to steering lock unit replacement
(See No.5 Programming Procedure Due to Steering Lock Unit Replacement.)
6
Programming due to keyless control module replacement
(See No.6 Programming Procedure Due to Keyless Control Module Replacement.)
7
Programming due to simultaneous replacement of immobilizer system-related parts
•  PCM
•  Keyless control module
•  Steering lock unit
(See No.7 Programming Procedure Due to Simultaneous Replacement of Immobilizer System-related Parts (PCM, Keyless Control Module, and Steering Lock Unit) .)
8
Programming due to coil antenna replacement
Programming of immobilizer system-related parts is not necessary
9
Programming after keyless receiver replacement
Programming of immobilizer system-related parts is not necessary
10
Key Programming
There is no programmed key or programmed advanced key
(See No.8 Key Programming Procedure (If there is no programmed key or programmed advanced key).)


M-MDS Connecting Procedure

Note
•  Do not place the M-MDS in the vehicle while programming the immobilizer system.

1.  Fully lower the door glass.

2.  Connect the M-MDS (IDS) to the DLC-2.

am2zzw00002102

3.  Place the M-MDS outside the vehicle.

Caution
•  Cover the vehicle body with a clean rag so as not to damage the vehicle body with the cable.


No.1 Additional Key Programming Procedure (Using Two Valid Keys)

Conditions
•  Have two or more valid keys.
Note
•  If a key ID number cannot be programmed and DTC 15 is displayed, the maximum number of programmed keys may have been reached. Verify the number of programmed keys using the M-MDS.
•  If eight keys have already been programmed and it is necessary to program other keys, the previously programmed key ID numbers must first be cleared.
•  If “Customer spare key programming disable” is selected, perform additional key programming using the M-MDS. (See No. 2 Additional Key Programming Procedure (Using the M-MDS).)

Procedure

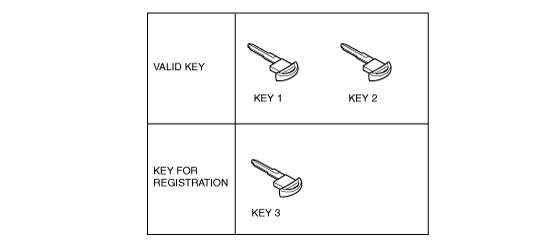

am2zzw00003797

Step

Procedure

Action after procedure
1
START ENGINE
1.  Start the engine using key 1.

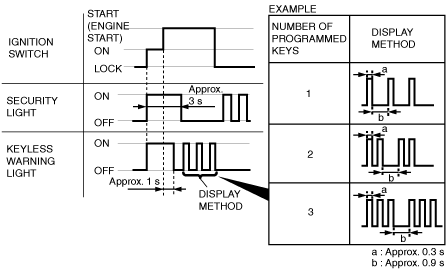

2.  Verify that the security light illuminates for approx. 3 s, and then turns off.
3.  Turn the ignition switch to the LOCK position.
Go to the next step.
2
LAUNCH PROGRAMMING MODE
1.  Turn the ignition switch to the ON position using key 1.
2.  After verifying that the security light illuminates for approx. 3 s and turns off, turn the ignition switch to the LOCK position within approx. 4 s using key 1.
3.  Remove key 1.
4.  Turn the ignition switch to the ON position using key 2.
5.  After verifying that the security light illuminates for approx. 3 s and turns off, turn the ignition switch to the LOCK position within approx. 4 s using key 2.
6.  Remove key 2.
Go to the next step.
3
PERFORM ADDITIONAL KEY PROGRAMMING
1.  Turn the ignition switch to the ON position using key 3.
2.  Verify that the security light illuminates for approx. 3 s, and then turns off.
3.  Remove key 3.
4.  Are there other keys to be programmed?
Yes
Go back to Step 2.
No
Go to the next step.
4
VERIFY KEY PROGRAMMED CORRECTLY
•  Verify that the engine can start and run for approx. 5 s or more using all the programmed keys.
Note
•  When verifying that the engine starts, wait at least approx. 5.s or more before starting the engine using the next key.
Procedure is completed


No. 2 Additional Key Programming Procedure (Using the M-MDS)

Conditions
•  There is only one valid key. Or, there is an advanced key which can start the engine.
Note
•  If a key ID number cannot be programmed and DTC 15 is displayed, the maximum number of programmed keys may have been reached. Verify the number of programmed keys using the M-MDS.
•  If eight keys have already been programmed and it is necessary to program other keys, the previously programmed key ID numbers must first be cleared.

Procedure

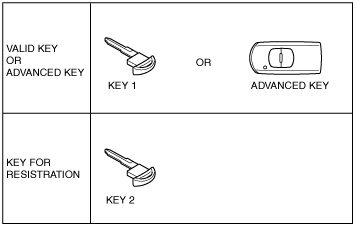

am2zzw00000558

Step

Procedure

Action after procedure
1
START ENGINE
1.  Start the engine using the key 1 or the advanced key.
Caution
•  When starting the engine with key 1, key programming may not be performed correctly if the advanced key is inside the vehicle. Do not place the advanced key in the vehicle when starting the engine with key 1.
•  When starting the engine with the advanced key, remove the advanced key from the vehicle after the engine is started.
2.  Verify that the security light illuminates for approx. 3 s, and then turns off.
3.  Turn the ignition switch to the LOCK position.
Go to the next step.
2
PERFORM ADDITIONAL KEY PROGRAMMING
1.  Connect the M-MDS to the DLC-2.
2.  Turn the ignition switch to the ON position using key 2.
Note
•  Although the security light starts flashing and DTC 15 is displayed after approx. 1 min, this does not indicate an improper procedure. Continue to perform the procedure as indicated.
3.  After vehicle identification, Select following from the M-MDS initial screen.
―  Using an IDS (laptop PC)
1.  Select “Body”.
2.  Select “Security”.
3.  Select “PATS function”.
4.  Then, select an item from the screen menu.
•  Program Additional Ignition Key
5.  Perform the security access according to the directions on the M-MDS screen.
Note
•  After executing the above menu, “The operation is successful” is displayed. This indicates that the programming of the key currently in the ignition switch ON position has been completed.
6.  After verifying that the PATS function menu is displayed again on the M-MDS screen, turn the ignition switch to the LOCK position.
7.  Remove key 2.
8.  Are there other keys to be programmed?
Yes
Change the key and repeat Step 2.
Note
•  Additional key programming can be performed using the procedure in No.1 Additional Key Programming Procedure (Using Two Valid Keys).
No
Go to the next step.
3
CLOSE THE M-MDS
1.  After verifying that the PATS function menu is displayed again on the M-MDS screen, select “Finish (this menu)”.
2.  Turn the ignition switch to the LOCK position.
Go to the next step.
4
VERIFY KEY PROGRAMMED CORRECTLY
Verify that the engine can be started with the programmed key.
Note
•  When verifying that the engine starts, wait at least approx. 5.s or more before starting the engine using the next key.
Procedure is completed


No.3 Additional Key Programming Procedure Changing

Note
•  This procedure is performed for disabling the No.1 Additional Key Programming Procedure (Using Two Valid Keys).
•  The setting is “Customer spare key programming enable” when the vehicle is new or the keyless control module is replaced with a new one.

Procedure

Step

Procedure

Action after procedure
1
CHANGE CUSTOMER SPARE KEY PROGRAMMING PROCEDURE
1.  Connect the M-MDS to the DLC-2.
2.  Turn the ignition switch to the ON position using a key (The key can be either the valid key or an unprogrammed key).
Note
•  If an unprogrammed key is used, the security light starts flashing and DTC 15 is displayed after approx. 1 min. However, this does not indicate an improper procedure. Continue to perform the procedure as indicated.
3.  After vehicle identification, Select following from the M-MDS initial screen.
―  Using an IDS (laptop PC)
1.  Select “Body”.
2.  Select “Security”.
3.  Select “PATS function”.
4.  Select either of the following from the M-MDS menu to change the additional key programming procedure.
―  When “Customer Spare Key Programming Enable” is selected: The additional key programming procedure using valid keys is enabled.
―  When “Customer Spare Key Programming Disable” is selected: The additional key programming procedure using valid keys is disabled.
5.  Perform the security access according to the directions on the M-MDS screen.
6.  After verifying that the PATS function menu is displayed again on the M-MDS screen, select “Finish (this menu)”.
7.  Turn the ignition switch to the LOCK position.
Procedure is completed


No.4 Programming Procedure Due to PCM Replacement

Conditions
•  Prepare a valid key or an advanced key that can start the engine.

Procedure

am2zzw00000559

Step

Procedure

Action after procedure
1
REPLACE THE PCM
Refer to PCM REMOVAL/INSTALLATION to perform PCM replacement and configuration.
(See PCM REMOVAL/INSTALLATION [MZR 1.3, MZR 1.5].)
(See PCM CONFIGURATION [MZR 1.3, MZR 1.5].)
(See MZ-CD 1.6.)
Go to the next step.
2
PERFORM PARAMETER RESET
1.  Connect the M-MDS to the DLC-2.
2.  Turn the ignition switch to the ON position using the valid key or the valid advanced key.
Note
•  Although the security light remains illuminated and DTC 23 is displayed after approx. 1 min, continue to perform the procedure as indicated.
3.  Verify that the keyless warning light illuminates for approx 3 s, and then turns off.
4.  After vehicle identification, Select following from the M-MDS initial screen.
―  Using an IDS (laptop PC):
1.  Select “Body”.
2.  Select “Security”.
3.  Select “PATS function”.
5.  Then, select an item from the screen menu.
•  Parameter Reset
6.  Perform the security access according to the directions on the M-MDS screen.
7.  Select replaced parts (PCM) according to the directions on the M-MDS screen.
Caution
•  At this time, do not Select other parts from the M-MDS menu.
8.  After verifying that the PATS function menu is displayed again on the M-MDS screen, select “Finish (this menu)”.
9.  Turn the ignition switch to the LOCK position.
10.  Turn the ignition switch to the ON position.
11.  Verify that the security light illuminates for approx. 3 s, and then turns off.
12.  Turn the ignition switch to the LOCK position.
Go to the next step.
3
VERIFY PROGRAMMING IS PERFORMED CORRECTLY
1.  Verify that the engine can be started with all the keys.
2.  Can the engine be started?
Yes
Procedure is completed
No
Perform the corresponding DTC inspection to repair the malfunctioning part.


No.5 Programming Procedure Due to Steering Lock Unit Replacement

Note
•  Since two or more keys need to be programmed to start the engine, program two or more keys after the replacement.
Conditions
•  Have two or more keys to be programmed after the replacement.

Procedure

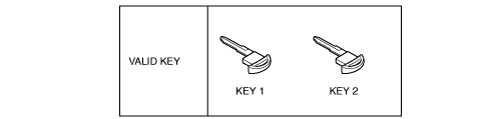

am2zzw00003798

Step

Procedure

Action after procedure
1
REPLACE STEERING LOCK UNIT
Replace the steering lock unit. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [L.H.D.].)
(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)
Go to the next step.
2
CLEAR IGNITION KEY ID NUMBERS
1.  Connect the M-MDS to the DLC-2.
2.  Turn the ignition switch to the ON position using key 1.
Note
•  Although the security light starts flashing and DTC 15 is displayed after approx. 1 min, this does not indicate an improper procedure. Continue to perform the procedure as indicated.
3.  After vehicle identification, Select following from the M-MDS initial screen.
―  Using an IDS (laptop PC):
1.  Select “Body”.
2.  Select “Security”.
3.  Select “PATS function”.
4.  Then, select an item from the screen menu.
•  Ignition Key Code Erase and Program
5.  Perform the security access according to the directions on the M-MDS screen.
Go to the next step.
3
PERFORM IGNITION KEY ID NUMBER PROGRAMMING
1.  Program two keys according to the directions on the M-MDS.
2.  Verify that the PATS function menu is displayed again on the M-MDS screen.
Go to the next step.
4
PERFORM Steering Lock Unit Programming
1.  Select “Steering Lock Unit Programming” from the M-MDS screen menu.
2.  Complete the Steering Lock Unit Programming according to the directions on the M-MDS.
3.  After verifying that the PATS function menu is displayed again on the M-MDS screen, select “Finish (this menu)”.
4.  Turn the ignition switch to the LOCK position.
5.  Disconnect the M-MDS from the DLC-2.
6.  Remove the programmed card key from the vehicle.
Go to the next step.
5
VERIFY KEY 1 PROGRAMMING PERFORMED CORRECTLY
1.  Start the engine using key 1.
2.  Verify that the security light and keyless warning light operate as shown in the following figure.
3.  Turn the ignition switch to the LOCK position and remove key 1.
Go to the next step.
6
VERIFY KEY 2 PROGRAMMING PERFORMED CORRECTLY
1.  Start the engine using key 2.
2.  Verify that the security light and keyless warning light operate as shown in the following figure.
3.  Turn the ignition switch to the LOCK position and remove key 2.
4.  Are there other keys to be programmed?
Yes
Repeat Step 6 using each programmed key.
No
Go to the next step.
7
VERIFY ADVANCED KEY PROGRAMMING PERFORMED CORRECTLY
1.  Bring the programmed advanced key into the vehicle.
2.  Close all doors.
3.  Remove the key from the key cylinder and place it on the front passenger's seat.
4.  Start the engine using the advanced key.
5.  Verify that the security light and keyless warning light operate as shown in the following figure.
6.  After verifying that the keyless warning light turns off, turn the ignition switch to the LOCK position.
Procedure is completed


No.6 Programming Procedure Due to Keyless Control Module Replacement

Note
•  Before beginning the procedure, verify that the customer has turned in all of the advanced keys and keys for the vehicle.
•  The engine cannot be started unless an advanced key and two or more keys are programmed after the replacement.
Conditions
•  Have two or more keys to be programmed after the replacement.
•  Have one or more advanced keys to be programmed after the replacement.

Procedure

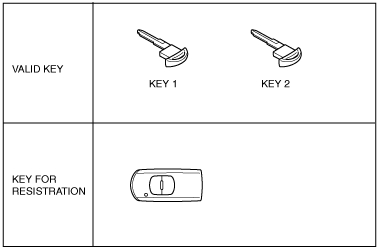

am2zzw00000561

Step

Procedure

Action after procedure
1
REPLACE KEYLESS CONTROL MODULE
Replace the keyless control module. (See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS AND START SYSTEM].)
Go to the next step.
2
PERFORM PARAMETER RESET
1.  Connect the M-MDS to the DLC-2.
2.  Turn the ignition switch to the ON position using key 1.
Note
•  Although the security light starts flashing and DTC 15 is displayed after approx. 1 min, this does not indicate an improper procedure. Continue to perform the procedure as indicated.
3.  After vehicle identification, Select following from the M-MDS initial screen.
―  Using an IDS (laptop PC):
1.  Select “Body”.
2.  Select “Security”.
3.  Select “PATS function”.
4.  Then, select an item from the screen menu.
•  Parameter Reset
5.  Perform the security access according to the directions on the M-MDS screen.
6.  Select replaced part “RKE” according to the directions on the M-MDS.
Caution
•  At this time, do not Select other parts from the M-MDS menu.
Go to the next step.
3
CLEAR IGNITION KEY ID NUMBERS
1.  Select “Ignition Key Code Erase and Program” from the M-MDS screen menu.
2.  Clear the ignition key ID number according to the directions on the M-MDS.
Go to the next step.
4
PERFORM IGNITION KEY ID NUMBER PROGRAMMING
1.  Program two keys according to the directions on the M-MDS.
2.  Verify that the PATS function menu is displayed again on the M-MDS screen.
Go to the next step.
5
PERFORM ADVANCED KEY PROGRAMMING
1.  Select “Program Additional Advanced Key” from the M-MDS screen menu.
2.  Program the advanced key according to the directions on the M-MDS.
3.  Verify that the PATS function menu is displayed again on the M-MDS screen.
Go to the next step.
6
PERFORM Steering Lock Unit Programming
1.  Select “Steering Lock Unit Programming” from the M-MDS screen menu.
2.  Complete the Steering Lock Unit Programming according to the directions on the M-MDS.
3.  After verifying that the PATS function menu is displayed again on the M-MDS screen, select “Finish (this menu)”.
4.  Turn the ignition switch to the LOCK position.
5.  Disconnect the M-MDS from the DLC-2.
6.  Remove the programmed card key from the vehicle.
Go to the next step.
7
VERIFY KEY 1 PROGRAMMING PERFORMED CORRECTLY
1.  Start the engine using key 1.
2.  Verify that the security light and keyless warning light operate as shown in the following figure.
3.  Turn the ignition switch to the LOCK position and remove key 1.
Go to the next step.
8
VERIFY KEY 2 PROGRAMMING PERFORMED CORRECTLY
1.  Start the engine using key 2.
2.  Verify that the security light and keyless warning light operate as shown in the following figure.
3.  Turn the ignition switch to the LOCK position and remove key 2.
4.  Are there other keys to be programmed?
Yes
Repeat Step 8 using each programmed key.
No
Go to the next step.
8
VERIFY ADVANCED KEY PROGRAMMING PERFORMED CORRECTLY
1.  Bring the programmed advanced key into the vehicle.
2.  Close all doors.
3.  Remove the key from the key cylinder and place it on the front passenger's seat.
4.  Start the engine using the advanced key.
5.  Verify that the security light and keyless warning light operate as shown in the following figure.
6.  Turn the ignition switch to the LOCK position.
Procedure is completed


No.7 Programming Procedure Due to Simultaneous Replacement of Immobilizer System-related Parts (PCM, Keyless Control Module, and Steering Lock Unit)

Caution
•  The menu and execution sequence of the M-MDS vary depending on the type of replaced unit and parts. Perform the procedures referring to the following table.
M-MDS menu
(1): Parameter Reset
(2): Ignition Key Code Erase and Program
(3): Program Additional Advanced Key
(4): Steering Lock Unit Programming

Replacement part

M-MDS execution menu/sequence

Conditions
Keyless control module and PCM
(1)→(2)→(3)→(4)
•  Have two or more keys to be programmed after the replacement.
•  Have one or more advanced keys to be programmed after the replacement.
Keyless control module and steering lock unit *1
Keyless control module, PCM, and steering lock unit *1
PCM and steering lock unit *1
(1)→(2)→(4)
Have two or more keys to be programmed after the replacement.

*1  :Because the steering lock unit is integrated with the ignition key cylinder, the key must also be replaced when replacing the steering lock unit.

Procedure

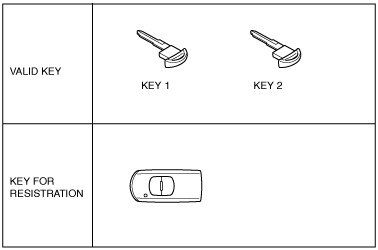

am2zzw00000562

Step

Procedure

Action after procedure
1
REPLACE UNITS OR PARTS
Replace the unit or parts.
Go to the next step.
2
PERFORM PARAMETER RESET
1.  Connect the M-MDS to the DLC-2.
2.  Turn the ignition switch to the ON position using key 1.
Note
•  Although the security light flashes or illuminates and DTC 15 or 23 is displayed after approx. 1 min, continue to perform the procedure.
3.  After vehicle identification, Select following from the M-MDS initial screen.
―  Using an IDS (laptop PC):
1.  Select “Body”.
2.  Select “Security”.
3.  Select “PATS function”.
4.  Then, select an item from the screen menu.
•  Parameter Reset
5.  Perform the security access according to the directions on the M-MDS screen.
6.  Select replaced parts according to the directions on the M-MDS screen.
―  If the PCM is replaced: Select “PCM”.
―  If the keyless control module is replaced: Select“ RKE”.
Caution
•  At this time, do not Select other parts from the M-MDS menu.
Go to the next step.
3
CLEAR IGNITION KEY ID NUMBERS
1.  Select “Ignition Key Code Erase and Program” from the M-MDS screen menu.
2.  Clear the ignition key ID number according to the directions on the M-MDS.
Go to the next step.
4
PERFORM IGNITION KEY ID NUMBER PROGRAMMING
1.  Program two keys according to the directions on the M-MDS.
2.  Verify that the PATS function menu is displayed again on the M-MDS screen.
Go to the next step.
5
PERFORM ADVANCED KEY PROGRAMMING
1.  Select “Program Additional Advanced Key” from the M-MDS screen menu.
2.  Program the advanced key according to the directions on the M-MDS.
3.  Verify that the PATS function menu is displayed again on the M-MDS screen.
Go to the next step.
6
PERFORM Steering Lock Unit Programming
1.  Select “Steering Lock Unit Programming” from the M-MDS screen menu.
2.  Complete the Steering Lock Unit Programming according to the directions on the M-MDS.
3.  After verifying that the PATS function menu is displayed again on the M-MDS screen, select “Finish (this menu)”.
4.  Turn the ignition switch to the LOCK position.
5.  Disconnect the M-MDS from the DLC-2.
6.  Remove the programmed card key from the vehicle.
Go to the next step.
7
VERIFY KEY 1 PROGRAMMING PERFORMED CORRECTLY
1.  Start the engine using key 1.
2.  Verify that the security light and keyless warning light operate as shown in the following figure.
3.  Turn the ignition switch to the LOCK position and remove key 1.
Go to the next step.
8
VERIFY KEY 2 PROGRAMMING PERFORMED CORRECTLY
1.  Start the engine using key 2.
2.  Verify that the security light and keyless warning light operate as shown in the following figure.
3.  Turn the ignition switch to the LOCK position and remove key 2.
4.  Are there other keys to be programmed?
Yes
Repeat Step 8 using each programmed key.
No
Go to the next step.
9
VERIFY ADVANCED KEY PROGRAMMING PERFORMED CORRECTLY
1.  Bring the programmed advanced key into the vehicle.
2.  Close all doors.
3.  Remove the key from the key cylinder and place it on the front passenger's seat.
4.  Start the engine using the advanced key.
5.  Verify that the security light and keyless warning light operate as shown in the following figure.
6.  Turn the ignition switch to the LOCK position.
Procedure is completed


No.8 Key Programming Procedure (If there is no programmed key or programmed advanced key)

Caution
•  The engine cannot be started if any step or procedure is skipped. Perform all procedures in the order of the steps.
Conditions
•  Have two or more keys to be programmed.
•  Have one or more advanced keys to be programmed.

Procedure

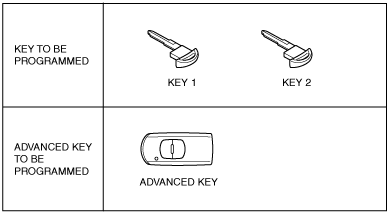

abarrw00002747

STEP

Procedure

Action after procedure
1
CLEARING AND PROGRAMMING ADVANCED KEY CODE
1.  Fully lower the driver-side door glass.
2.  Connect the M-MDS to the DLC-2.
3.  Set the M-MDS outside the vehicle with its cable passing through the door glass opening.
4.  After vehicle identification, select the following from the M-MDS initialization screen.
1.  “Body”
2.  “Security”
3.  “PATS (immobilizer) function”
5.  Next, select “Advanced Key Code Erase and Program” from the screen menu.
6.  Perform the security access according to the instructions on the M-MDS screen.
7.  Clear the advanced key according to the instructions on the M-MDS screen.
8.  Program the advanced key according to the instructions on the M-MDS screen.
Go to the next step.
2
PROGRAM/CLEAR AUXILIARY KEY
1.  Remove the valid keys and the valid advanced keys from the vehicle (keep them 1 m or more from the vehicle) and switch the ignition ON according to the directions on the M-MDS screen. Select, “There is no programmed ignition key and programmed advanced key” from the M-MDS screen.
Caution
•  The engine cannot be started if the ignition is switched ON by selecting “FORCED IGNITION ON”, however, this does not indicate a malfunction. Continue to perform the procedure as indicated.
•  Although the security light or the keyless warning light illuminates or flashes, this does not indicate an improper procedure. Continue to perform the procedure as indicated.
2.  After the vehicle is identified, select the following items from the initialization screen of the IDS.
1.  Select “Body”.
2.  Select “Security”.
3.  Select “PATS Functions”.
3.  Perform the security access according to the directions on the M-MDS screen.
Go to the next step.
3
PERFORM IGNITION KEY ID NUMBER CLEARING
1.  Select “Ignition Key Code Erase and Program” from the M-MDS screen menu.
2.  Clear the ignition key ID number according to the directions on the M-MDS.
Go to the next step.
4
PERFORM IGNITION KEY ID NUMBER PROGRAMMING
1.  Program two keys according to the directions on the M-MDS.
2.  After verifying that the PATS function menu is displayed again on the M-MDS screen, select “Finish (this menu)”.
3.  Switch the ignition off (LOCK).
4.  Disconnect the M-MDS from the DLC-2.
Go to the next step.
5
ESTABLISH IMMOBILIZER SYSTEM WITH KEY 1
Note
•  By starting the engine, the immobilizer system is established and key programming is finished.
1.  Start the engine using key 1.
2.  Verify that the security light and keyless warning light operate as shown in the following figure.
3.  Switch the ignition off (LOCK) and remove key 1.
Go to the next step.
6
VERIFY THAT KEY IS PROGRAMMED
1.  Start the engine using key 2.
2.  Verify that the security light and keyless warning light operate as shown in the following figure.
3.  Switch the ignition off (LOCK) and remove key 2.
4.  Are there other keys to be programmed?
Yes
Change the key and repeat Step 6.
No
Go to the next step.
7
VERIFY THAT ADVANCED KEY IS PROGRAMMED
1.  Bring the advanced key into the vehicle.
2.  Close all doors.
3.  Remove the key from the key slot and place it on the front passenger's seat.
4.  Start the engine using the advanced key.
5.  Verify that the security light and keyless warning light operate as shown in the following figure.
6.  After verifying that the keyless warning light turns off, switch the ignition off (LOCK).
Procedure is completed.
