FUEL-FILLER LID OPENER CABLE REMOVAL/INSTALLATION [3HB]

id0914004458d5


L.H.D.

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front seat (driver's seat) (See FRONT SEAT REMOVAL/INSTALLATION.)
(2)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(3)  Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)
(4)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)
(5)  Front scuff plate (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION [3HB].)
(6)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(7)  Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

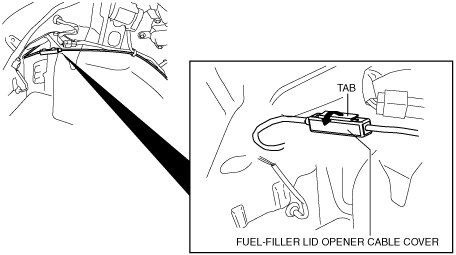

3.  Open the fuel-filler lid opener cable cover.

am2zzw00003460

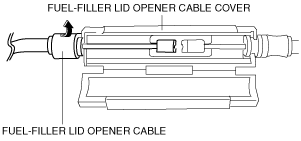

4.  Disconnect the fuel-filler lid opener cable from the fuel-filler lid opener cable cover.

am2zzw00003461

5.  Flip over the floor mat and remove the cable from the fuel-filler lid opener lever.

am2zzw00000653

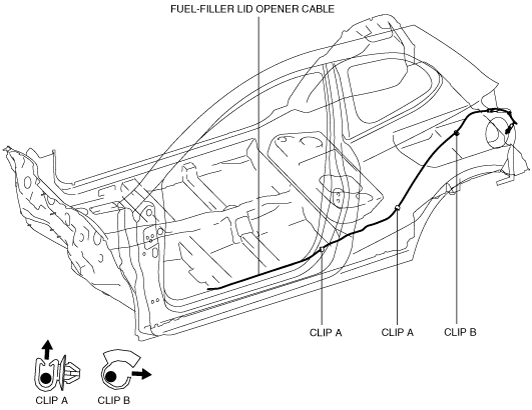

6.  Remove the fuel-filler lid opener cable.

am2zzw00003313

7.  Install in the reverse order of removal.


R.H.D.

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front seat (driver's seat) (See FRONT SEAT REMOVAL/INSTALLATION.)
(2)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
(3)  Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)
(4)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)
(5)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION [3HB].)
(6)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(7)  Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

3.  Open the fuel-filler lid opener cable cover.

am2zzw00003460

4.  Disconnect the fuel-filler lid opener cable from the fuel-filler lid opener cable cover.

am2zzw00003461

5.  Flip over the floor mat and remove the cable from the fuel-filler lid opener lever.

am2zzw00000655

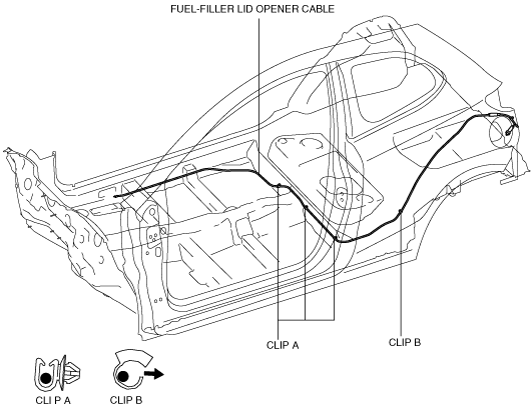

6.  Remove the fuel-filler lid opener cable.

am2zzw00003314

7.  Install in the reverse order of removal.
