THEFT-DETERRENT SIREN REMOVAL/INSTALLATION
id091400809500
5HB
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Rear scuff plate (passenger's side) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (2) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
- (3) Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)
- (4) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
- (5) Trunk side trim (passenger's side) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

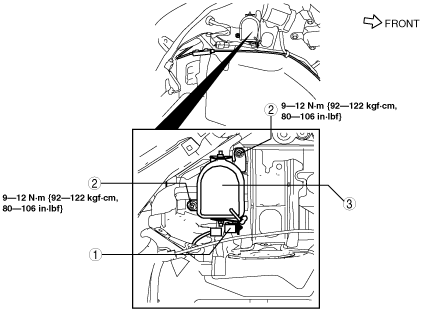

3. Remove in the order indicated in the table.
|
1
|
Connector
|
|
2
|
Nut
|
|
3
|
Theft-deterrent siren
|
4. Install in the reverse order of removal.
3HB
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)
- (2) Rear seat belt lower anchor installation bolt (See REAR SEAT BELT REMOVAL/INSTALLATION.)
- (3) Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.)
- (4) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION [3HB].)
- (5) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
- (6) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.
|
1
|
Connector
|
|
2
|
Nut
|
|
3
|
Theft-deterrent siren
|
4. Install in the reverse order of removal.
