C-PILLAR TRIM REMOVAL/INSTALLATION

id091700459100

1.  Remove the following parts:

(1)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION)

(2)  Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION)

(3)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION)

(4)  Lower anchor installation bolts of the rear seat belt (See REAR SEAT BELT REMOVAL/INSTALLATION)

(5)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION)

2.  Partially peel back the seaming welt.

3.  Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION)

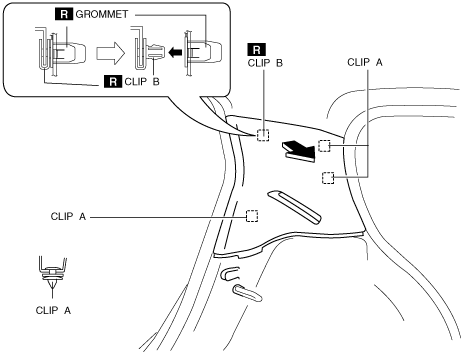

4.  Pull the C-pillar trim in the direction of the arrow shown in the figure and remove it while detaching clips A and B.

am2zzw00001825

5.  Cut the lead wire connecting clip B and grommet using a nipper.

am2zzw00003742

6.  Pull out the rear seat belt lower anchor and remove the C-pillar trim.

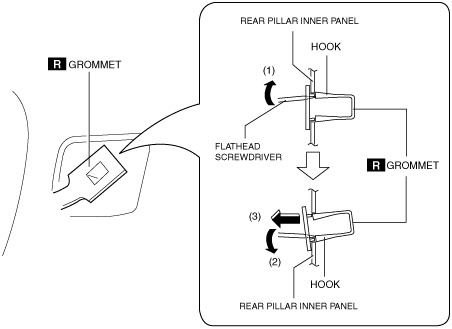

7.  Move the hook in the direction of arrows (1) and (2) shown in the figure using a flathead screwdriver and detach it from the rear pillar inner panel.

am2zzw00001818

8.  Remove the grommet in the direction of the arrow (3) shown in the figure.

9.  When installing the C-pillar trim, install the new clip and new grommet to the C-pillar trim in advance.

10.  Install in the reverse order of removal.
