GLOVE COMPARTMENT COVER REMOVAL/INSTALLATION

id091700466700

1.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION)

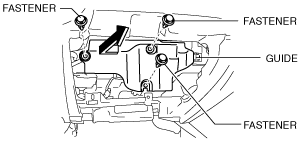

2.  Remove the fasteners, then remove the glove compartment cover in the direction of the arrow shown in the figure.

am2zzw00000280

Caution

•  Be careful not to damage the guide during removal.

3.  Install in the reverse order of removal.
