FRONT COMBINATION LIGHT REMOVAL/INSTALLATION

id091800464400

1.  Disconnect the negative battery cable.

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

am2zzw00006515

1	Connector
2	Bolt
3	Fastener
4	Front combination light

4.  Install in the reverse order of removal.(See Front combination light installation note.)

5.  Adjust the headlight aiming. (See HEADLIGHT AIMING.)

Front combination light installation note

Caution

•  When replacing the front combination light, refer to the following disassembly figure and verify that parts are assembled correctly. If a part has not been assembled correctly, it could cause problems such as water leakage or fogging in the housing.

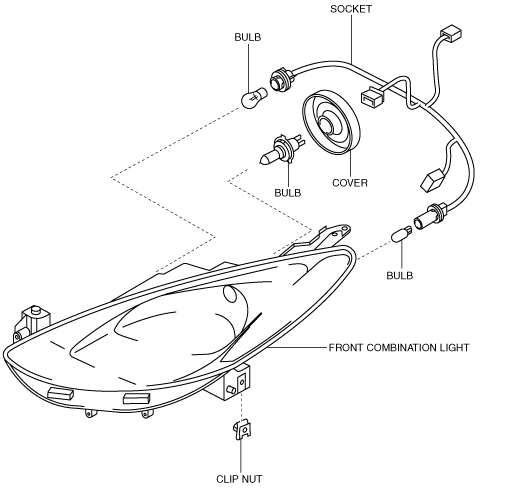

2-Beam type

am2zzw00012991

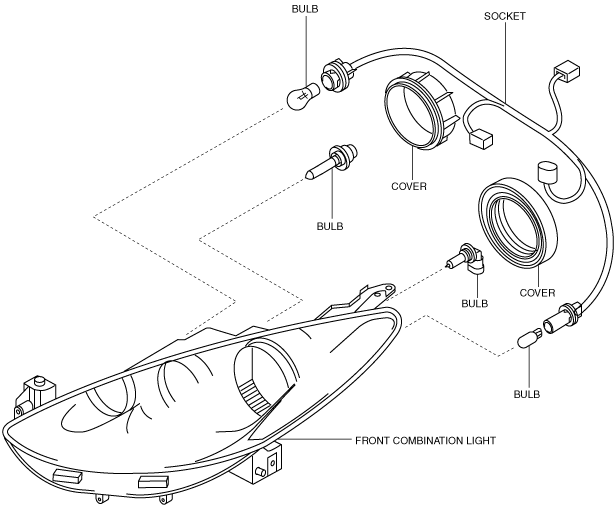

4-Beam type

am2zzw00012992

Note

•  Parts necessary for assembly vary depending on the vehicle's manufacturing period and specifications.
