COMBINATION SWITCH REMOVAL/INSTALLATION

id091800469200

L.H.D.

1.  Disconnect the negative battery cable and wait 1 min or more.

2.  Remove the following parts:

(1)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

(2)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [L.H.D.].)

(3)  Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(4)  Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION.)

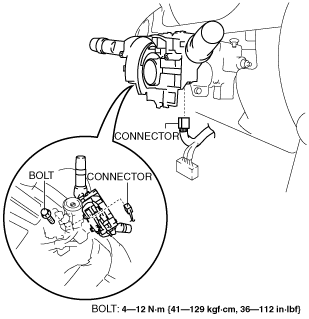

3.  Disconnect the connector.

am2zzw00003514

4.  Remove the bolt.

5.  Detach the tab.

am2zzw00002197

6.  Remove the combination switch.

7.  Install in the reverse order of removal.

R.H.D.

1.  Disconnect the negative battery cable and wait 1 min or more.

2.  Remove the following parts:

(1)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION)

(2)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [R.H.D.].)

(3)  Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(4)  Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION.)

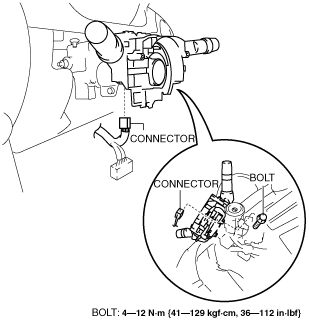

3.  Disconnect the connector.

am2zzw00003515

4.  Remove the bolt.

5.  Detach the tab.

am2zzw00002197

6.  Remove the combination switch.

7.  Install in the reverse order of removal.

Combination Switch Installation Note

1.  Align the combination switch rib with the steering shaft guide and press the combination switch until it contacts.

am2zzw00002198
