LIGHT SWITCH INSPECTION

id091800469800

1.  Disconnect the negative battery cable.

2.  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

3.  Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION.)

4.  Verify that the continuity between the light switch terminals is as indicated in the table.

•  If not as indicated in the table, replace the light switch.

Vehicles Without Auto Light System

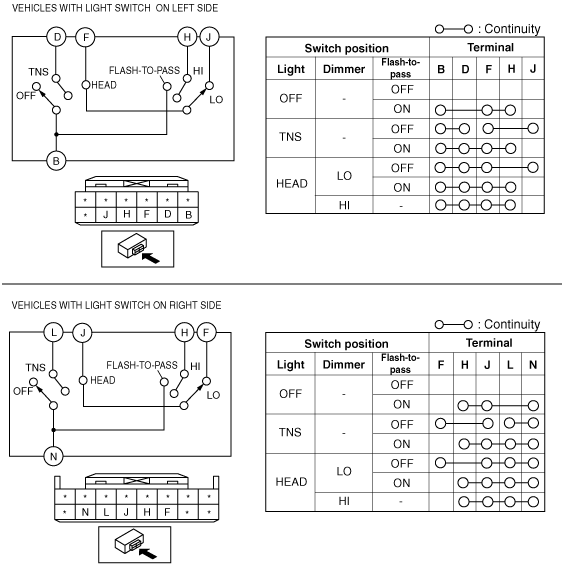

Light switch

am2zzw00005804

Turn switch

am2zzw00006287

Vehicles With Auto Light System

Light switch

am2zzw00005805

Turn switch

am2zzw00006287
