FOG LIGHT SWITCH INSPECTION

id091800812900

1.  Disconnect the negative battery cable.

2.  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

3.  Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION.)

4.  Verify that the continuity between the fog light switch terminals is as indicated in the table.

•  If not as indicated in the table, replace the light switch.

Front fog light switch

am2zzw00005890

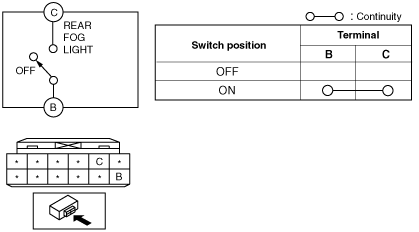

Rear fog light switch

am2zzw00005891

Front and rear fog light switch

am2zzw00005892
