WASHER TANK REMOVAL/INSTALLATION
id091900476100
1. Disconnect the negative battery cable.
2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)
3. Remove the front combination light on the left side. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

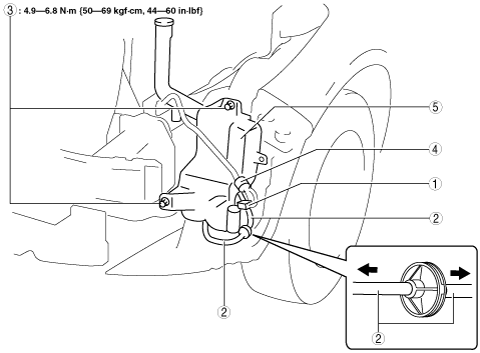

4. Remove in the order indicated in the table.
am2zzw00005468
|
|
1
|
Connector
|
|
2
|
Washer hose
|
|
3
|
Bolt
|
|
4
|
Clip
|
|
5
|
Washer tank
|
5. Install in the reverse order of removal.
Washer Hose Installation Note

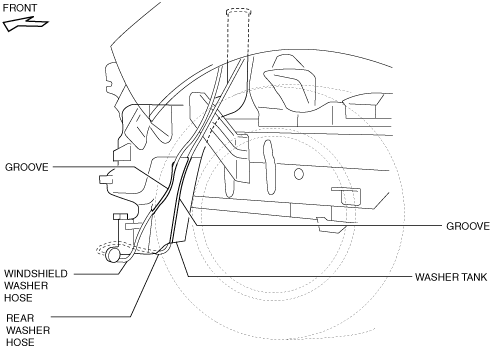

1. Install the washer hoses by inserting them in the washer tank grooves as shown in the figure.
am2zzw00002263
|
