AUXILIARY JACK/USB PORT REMOVAL/INSTALLATION

id092000811500

1.  Disconnect the negative battery cable.

2.  Remove the console. (See REAR CONSOLE REMOVAL/INSTALLATION.)

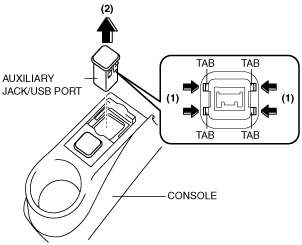

3.  Remove the auxiliary jack/USB port in the direction of the arrow (2) shown in the figure while pressing the auxiliary jack/USB port tabs in the direction of the arrow (1).

am2zzw00007039

4.  Install in the reverse order of removal.
