AUXILIARY JACK INSPECTION

id092000812600

1.  Disconnect the negative battery cable.

2.  Remove the console. (See REAR CONSOLE REMOVAL/INSTALLATION.)

3.  Remove the auxiliary jack. (See AUXILIARY JACK REMOVAL/INSTALLATION.)

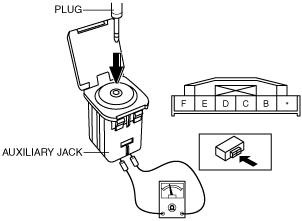

4.  Connect a commercially-available nonresistant plug to the auxiliary jack.

am2uuw00000214

5.  Verify that the continuity between the auxiliary jack terminals is as indicated in the table.

acxuuw00003306

•  If not as indicated in the table, replace the auxiliary jack.
