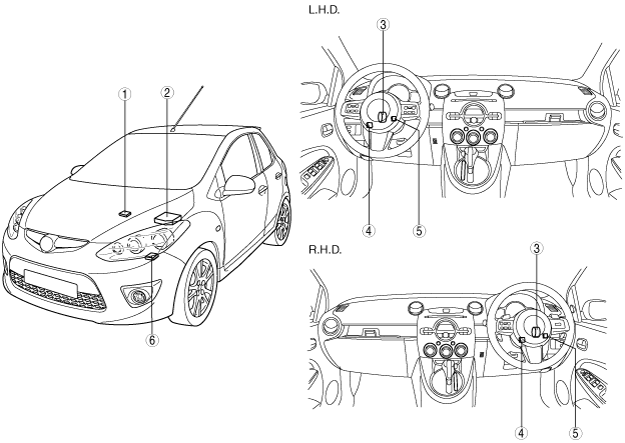

POWER SYSTEM LOCATION INDEX

id092100800700

am2zzw00004049

1	Main fuse (See MAIN FUSE REMOVAL/INSTALLATION.)
2	Relay and fuse block (See RELAY LOCATION.) (See RELAY INSPECTION.)
3	Ignition switch (See IGNITION SWITCH REMOVAL/INSTALLATION.) (See IGNITION SWITCH INSPECTION.)
4	Steering lock unit (with advanced keyless and start system) (See STEERING LOCK UNIT INSPECTION [WITH ADVANCED KEYLESS AND START SYSTEM].)
5	Key reminder switch (without advanced keyless and start system) (See KEY REMINDER SWITCH REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS AND START SYSTEM].) (See KEY REMINDER SWITCH INSPECTION [WITHOUT ADVANCED KEYLESS AND START SYSTEM].)
6	Relay box (MZ-CD 1.6, with PTC heater) (See RELAY LOCATION.) (See RELAY INSPECTION.)
