FUEL GAUGE SENDER UNIT INSPECTION

id092200497100

MZR 1.3, MZR 1.5

1.  Disconnect the negative battery cable.

2.  Remove the fuel pump unit. (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION.)

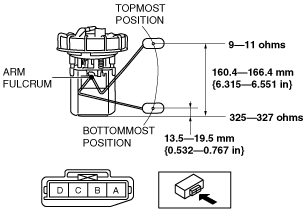

3.  Move the float to the topmost and bottommost positions, and verify that the resistance between terminals C and D of the fuel gauge sender unit and the position of the float are as shown in the figure.

am2zzw00001810

•  If they are not as shown in the figure, replace the fuel gauge sender unit.

MZ-CD 1.6

1.  Disconnect the negative battery cable.

2.  Remove the fuel gauge sender unit. (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION.)

3.  Move the float to the topmost and bottommost positions, and verify that the resistance between terminals C and D of the fuel gauge sender unit and the position of the float are as shown in the figure.

am2zzw00002639

•  If they are not as shown in the figure, replace the fuel gauge sender unit.
