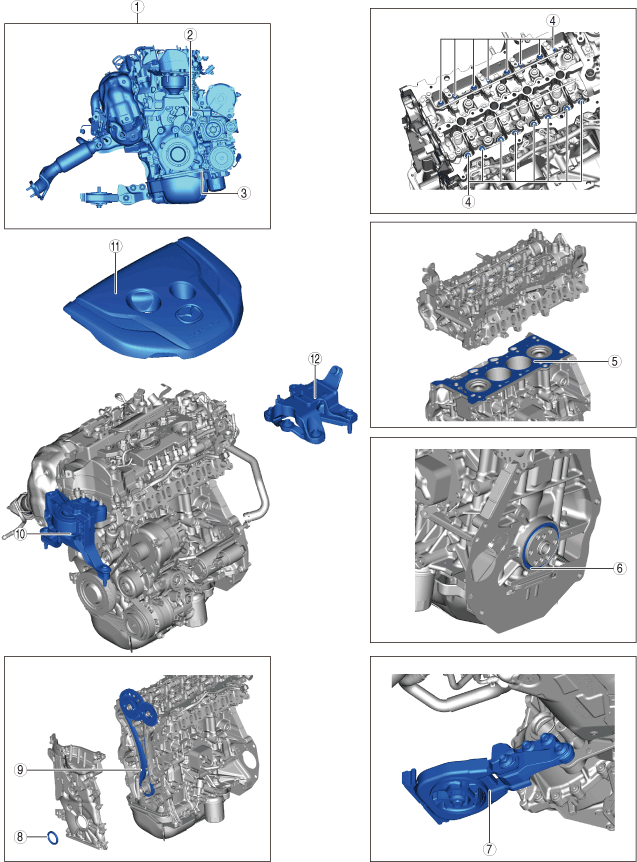

ENGINE LOCATION INDEX [SKYACTIV-D 1.8]

id0110t1800100

am3zzw00029862

1	Engine (See ENGINE TUNE-UP [SKYACTIV-D 1.8].) (See COMPRESSION INSPECTION [SKYACTIV-D 1.8].) (See ENGINE MOUNT DISASSEMBLY/ASSEMBLY [SKYACTIV-D 1.8].) (See ENGINE REMOVAL/INSTALLATION [SKYACTIV-D 1.8].) (See ENGINE DISASSEMBLY/ASSEMBLY [SKYACTIV-D 1.8].)
2	Drive belt auto tensioner (See DRIVE BELT AUTO TENSIONER INSPECTION [SKYACTIV-D 1.8].) (See DRIVE BELT AUTO TENSIONER REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
3	Drive belt (See DRIVE BELT INSPECTION [SKYACTIV-D 1.8].) (See DRIVE BELT REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
4	HLA (See HYDRAULIC LASH ADJUSTER (HLA) INSPECTION [SKYACTIV-D 1.8].) (See HYDRAULIC LASH ADJUSTER (HLA) REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
5	Cylinder head gasket (See CYLINDER HEAD GASKET REPLACEMENT [SKYACTIV-D 1.8].)
6	Rear oil seal (See REAR OIL SEAL REPLACEMENT [SKYACTIV-D 1.8].)
7	No.1 engine mount (See ENGINE MOUNT DISASSEMBLY/ASSEMBLY [SKYACTIV-D 1.8].)
8	Front oil seal (See FRONT OIL SEAL REPLACEMENT [SKYACTIV-D 1.8].)
9	Timing chain (See TIMING CHAIN REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
10	No.3 engine mount (See ENGINE MOUNT DISASSEMBLY/ASSEMBLY [SKYACTIV-D 1.8].)
11	Engine cover (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 1.8].)
12	No.4 engine mount (See ENGINE MOUNT DISASSEMBLY/ASSEMBLY [SKYACTIV-D 1.8].)
