MECHANICAL [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))]

id0110u3000100


Outline

•  The following parts have been adopted to achieve cylinder deactivation control for SKYACTIV-G 2.0 and SKYACTIV-G 2.5.
―  Switchable HLA adopted
―  OCV for cylinder deactivation adopted

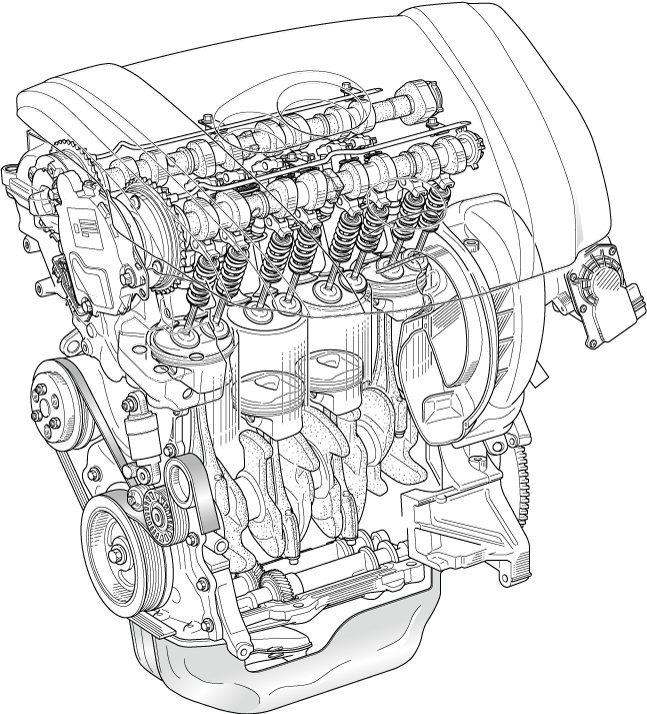

Structural View

am3zzn00007808

Structure

•  Consists of the following parts:

Part name

Reference
Cylinder head cover
―
Cylinder head
(See CYLINDER HEAD [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Cylinder head gasket
―
Cylinder block
―
Crankshaft
(See CRANKSHAFT, MAIN BEARING [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Piston
(See PISTON, PISTON RING, PISTON PIN [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Connecting rod
(See CONNECTING ROD, CONNECTING ROD BEARING [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Engine front cover
(See ENGINE FRONT COVER [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Crankshaft pulley
(See CRANKSHAFT PULLEY [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Drive belt
(See DRIVE BELT [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Valve mechanism
Valve
(See VALVE, VALVE SPRING, VALVE SEAL, VALVE GUIDE [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
HLA
(See HYDRAULIC LASH ADJUSTER, ROCKER ARM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
(See SWITCHABLE HYDRAULIC LASH ADJUSTER (SWITCHABLE HLA), ROCKER ARM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Camshaft
(See CAMSHAFT [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Timing chain
(See TIMING CHAIN, CHAIN TENSIONER [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Variable valve timing mechanism
OCV for hydraulic variable valve timing system
(See OCV FOR HYDRAULIC VARIABLE VALVE TIMING SYSTEM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Hydraulic variable valve timing actuator
―
Electric variable valve timing actuator
―
Electric variable valve timing relay
―
Cylinder deactivation
Switchable HLA
(See SWITCHABLE HYDRAULIC LASH ADJUSTER (SWITCHABLE HLA), ROCKER ARM [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
OCV for cylinder deactivation
(See OIL CONTROL VALVE (OCV) FOR CYLINDER DEACTIVATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Balancer unit (SKYACTIV-G 2.5)
(See BALANCER UNIT [SKYACTIV-G (WITH CYLINDER DEACTIVATION (E))].)
Engine mount
―
