LUBRICATION SYSTEM [SKYACTIV-D 1.8]

id0111t1002100


Outline

•  With the adoption of the chain drive type oil pump, oil pump drive force has been reduced.
•  With the adoption of the oil shower pipe, sliding resistance has been reduced.
•  With the adoption of the engine oil solenoid valve, oil pump discharge pressure can be controlled (hydraulic two-step control).

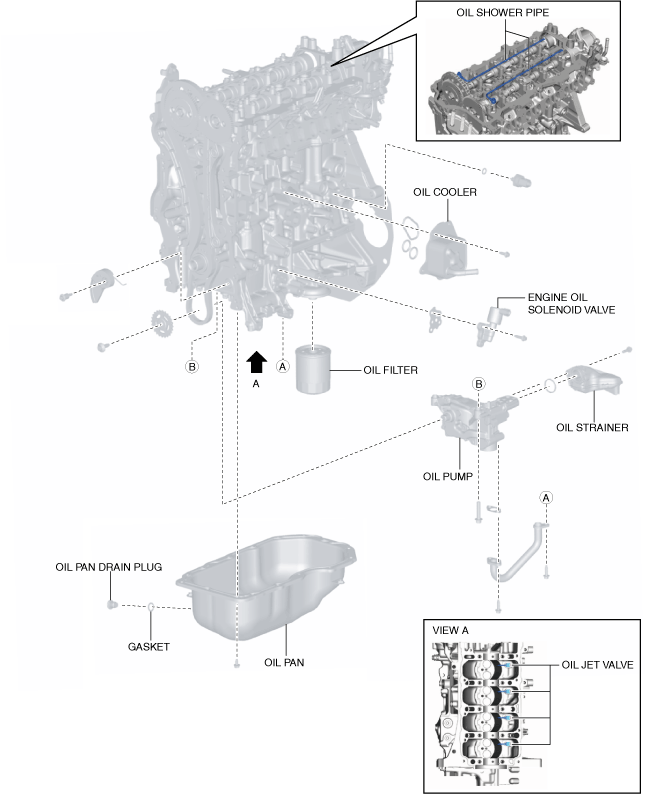

Structural View

am3zzn00009222

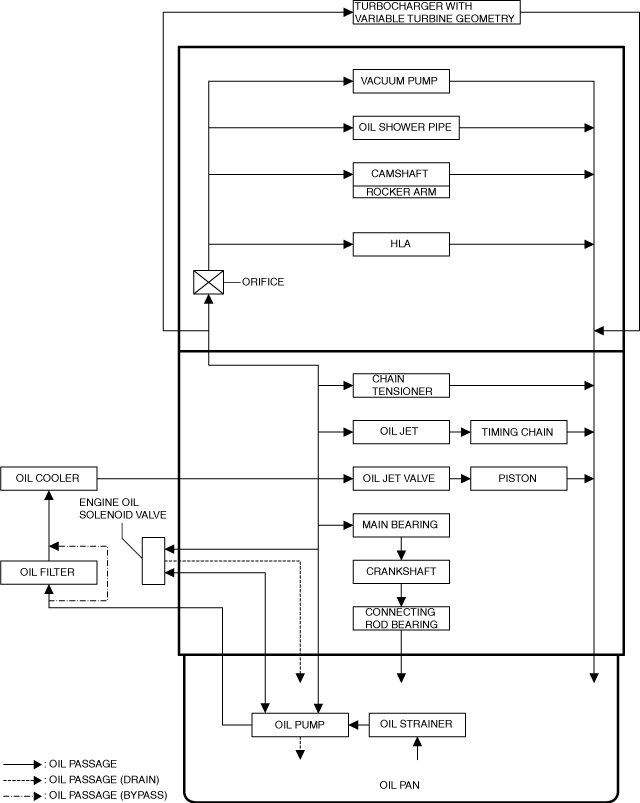

Flow View

am3zzn00008360

Structure

•  Consists of the following parts:

Part name

Reference
Oil filter
―
Oil cooler
―
Oil pan
―
Oil strainer
―
Oil pump
(See OIL PUMP [SKYACTIV-D 1.8].)
Oil jet valve
(See OIL JET VALVE [SKYACTIV-D 1.8].)
Engine oil solenoid valve
(See ENGINE OIL SOLENOID VALVE [SKYACTIV-D 1.8].)
Oil shower pipe
(See OIL SHOWER PIPE [SKYACTIV-D 1.8].)
