ELECTRIC WATER PUMP [SKYACTIV-X 2.0]

id0112hf004000

Purpose, Function

• The electric water pump adjusts the cooling performance of the charge air cooler.

Construction

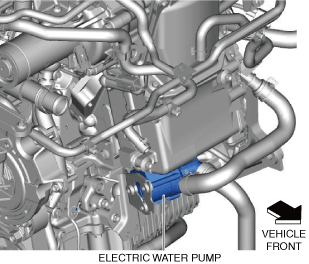

• The electric water pump is located underneath the intake manifold.

am3zzn00010133

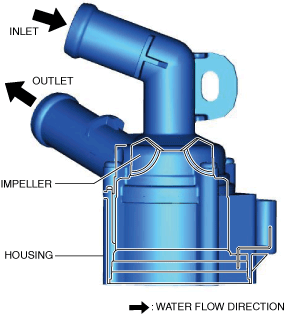

• The electric water pump consists of the housing and impeller.

am3zzn00010071

Operation

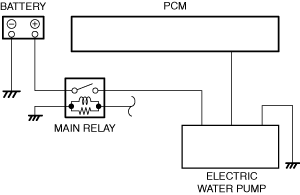

• The electric water pump is driven by the control signal sent from the PCM to maintain an appropriate intake air temperature.

am3zzn00010134

• For the electric water pump control, refer to the CONTROL SYSTEM. (See ELECTRIC WATER PUMP CONTROL [SKYACTIV-X 2.0].)
