COOLING SYSTEM [SKYACTIV-D 1.8]

id0112t1002800


Outline

•  Pump efficiency has been improved by changing the water pump impeller to a shroud impeller.
•  By adopting a water jacket spacer in the water jacket of the cylinder block, the flow speed of the engine coolant near the liner is reduced and heat loss of engine coolant from around the combustion is reduced.

Structural View

am3zzn00008291

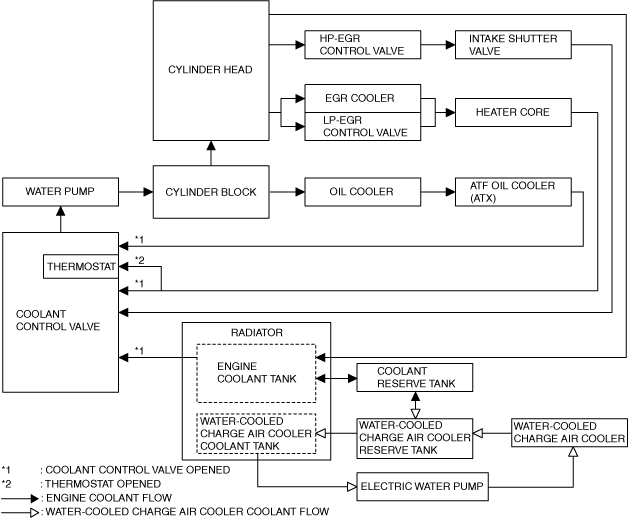

Flow Chart

am2zzn00003216

Structure

•  Consists of the following parts:

Part name

Reference
Radiator
―
Cooling system cap
―
Water-cooled charge air cooler reserve tank cap
―
Coolant control valve
(See COOLANT CONTROL VALVE [SKYACTIV-D 1.8].)
Water pump
―
Electric water pump
(See ELECTRIC WATER PUMP [SKYACTIV-D 1.8].)
Cooling fan component
―
Cooling fan relay
―
Fan control module
(See FAN CONTROL MODULE [SKYACTIV-D 1.8].)
