FUEL SYSTEM [SKYACTIV-X 2.0]

id0114hf002600


Outline

•  A multiple hole type fuel injector has been adopted which provides higher fuel injection accuracy for improved fuel efficiency and output.
•  Piston movement-compression by the 4-head cam inside the high pressure fuel pump heightens the fuel pressure, achieving improved fuel efficiency and output.
•  A brushless motor has been adopted in the fuel pump unit for improved fuel economy. Using the brushless motor, the fuel pump function is improved and a stabilized fuel supply is achieved.

Structural View

am3zzn00009712

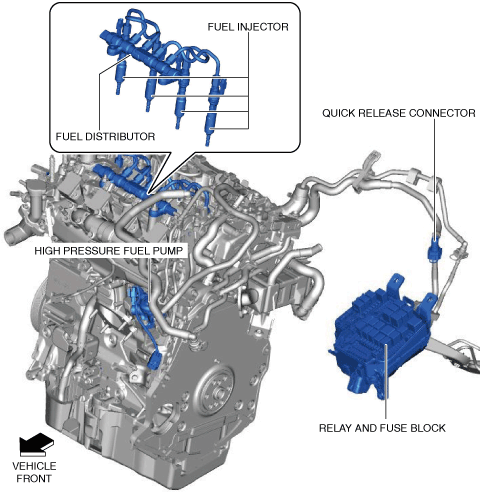

Engine compartment side

atsuzn00000858

Fuel tank side

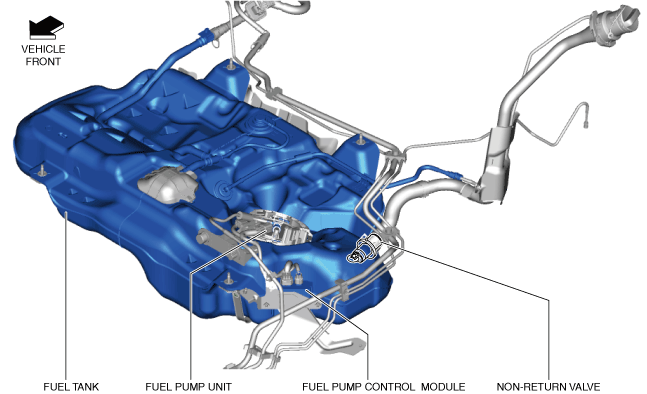

2WD

atsuzn00000795

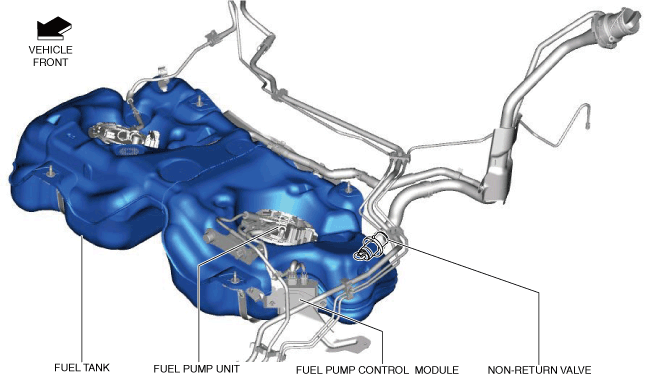

AWD

atsuzn00000796

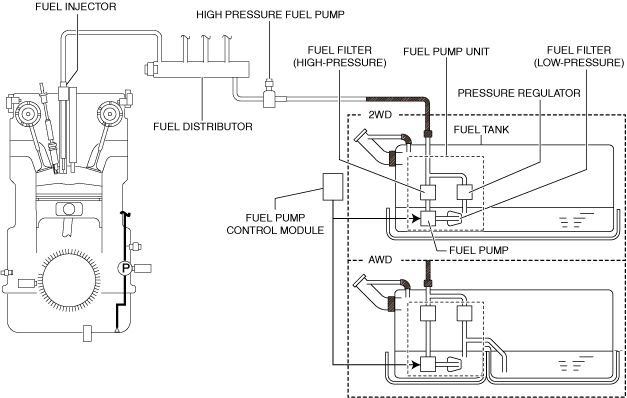

System Diagram

atsuzn00000737

Structure

•  The fuel system consists of the following parts:

Part/System name

Reference
Return-less fuel system
Fuel pump unit
(See RETURNLESS FUEL SYSTEM [SKYACTIV-X 2.0].)
Direct fuel injection system
(See DIRECT FUEL INJECTION SYSTEM [SKYACTIV-X 2.0].)
High pressure fuel pump
(See HIGH PRESSURE FUEL PUMP [SKYACTIV-X 2.0].)
Fuel distributor
(See FUEL DISTRIBUTOR [SKYACTIV-X 2.0].)
Fuel injector
(See FUEL INJECTOR [SKYACTIV-X 2.0].)
Fuel tank
(See FUEL TANK [SKYACTIV-X 2.0].)
Non-return valve
Fuel pump relay
―
Sub relay
―
Fuel pump control module
(See FUEL PUMP CONTROL MODULE [SKYACTIV-X 2.0].)
Quick connector (fuel system)
―


Specification

Item

Specification
Fuel injector
Type
High resistance
Fuel supply method
Top-feed
Drive types
Electronic
Pressure regulator control pressure
(kPa {kgf/cm2, psi})
Approx. 660 {6.73, 95.7}
Fuel pump type
Electric
Fuel tank capacity
(L {US gal, Imp gal})
2WD: 51.0 {13.5, 11.2}
AWD: 48.0 {12.7, 10.6}

Fuel type

Fuel

Research Octane Number

Country
Premium unleaded fuel (Conforming to EN 228 and within E10)*1
95 or above
New Caledonia, Turkey, Canary Islands, Reunion, Morocco, Austria, Greece, Italy, Switzerland, Belgjum, Denmark, Finland, Norway, Portugal, Spain, Sweden, Hungary, Germany, Poland, Bulgaria, Croatia, Slovenia, Latvia, Lithuania, France, Ukraine, Czech, Estonia, Faeroe, Iceland, Romania, The Netherlands, Macedonia, Bosnia And Herzegovina, Andorra, Vatican, Sah Marino, Serbia, Monaco, Montenegro, Liechtenstein, Albania, Moldova, Martinique, F. Guiana, Guadeloque, Cyprus, Malta, Ireland, UK, taiwan, Iran, Israel, Saudi Arabia, UAE, Singapore, Hongkong, Macau, Mauritius, Jamaica, Surinam
Premium unleaded fuel*2
Australia, New Zeland
Premium unleaded fuel (within E20)
Thailand
Regular nleaded fuel
90 or above
Trinidad And Tobago

*1  :Europe
*2  :Australia
