EXHAUST SYSTEM [SKYACTIV-D 1.8]

id0115q9125800

Outline

• By employing an exhaust gas passage in the cylinder head, the exhaust manifold has been eliminated.

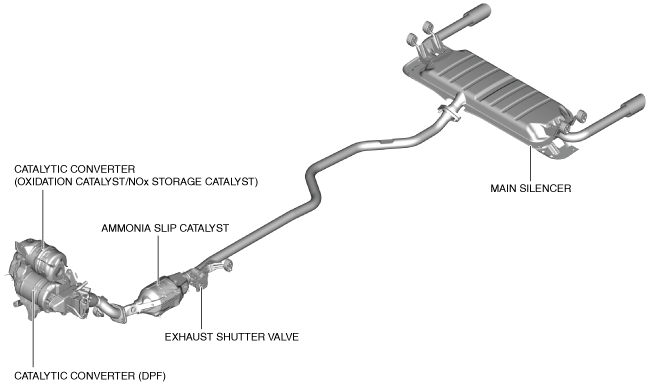

Structural view

am3zzn00008327

System diagram

am3zzn00008328

Structure

• The exhaust system consists of the following parts:

Part name

Reference

Catalytic converter (oxidation catalyst/NOx strage catalyst)

(See EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-D 1.8].)

Catalytic converter (DPF)

Ammonia slip catalyst

―

Main silencer

―

Part name	Reference
Catalytic converter (oxidation catalyst/NOx strage catalyst)	(See EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-D 1.8].)
Catalytic converter (DPF)	(See EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-D 1.8].)
Ammonia slip catalyst	―
Main silencer	―
