EMISSION SYSTEM [SKYACTIV-X 2.0]

id0116hf110100


Outline

•  A single-nano catalyst has been adopted for the three-way catalyst to improve emission gas purification efficiency.
•  The emission system purifies contaminants (CO, HC, NOx) in the exhaust gas, blow-by gas, and evaporative gas exhausted from the vehicle.
•  Gasoline particulate elimination equipment (gasoline particulate filter) has been adopted which eliminates PM from the exhaust gas.

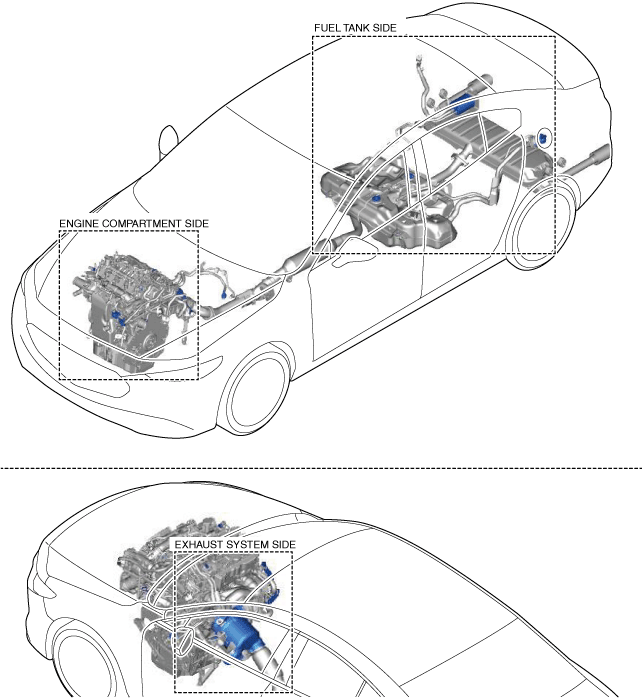

Structural View

am3zzn00009698

Engine compartment side

atsuzn00000867

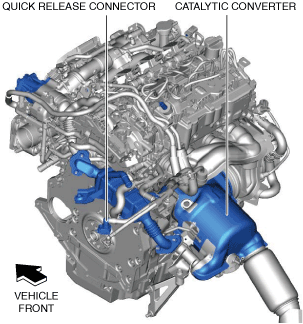

Exhaust system side

atsuzn00000868

Fuel tank side

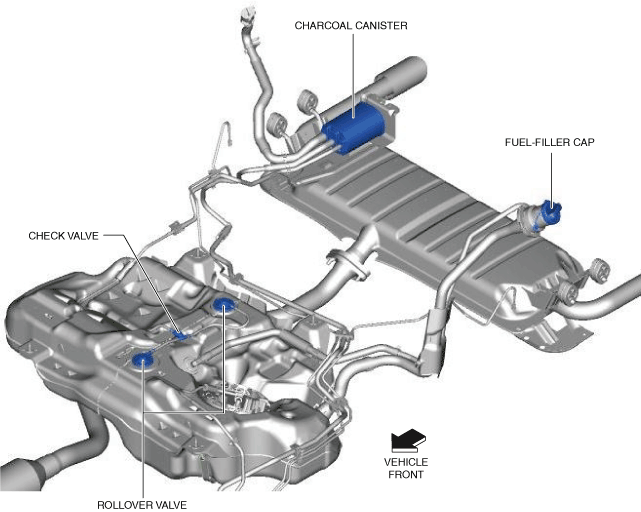

2WD

atsuzn00000790

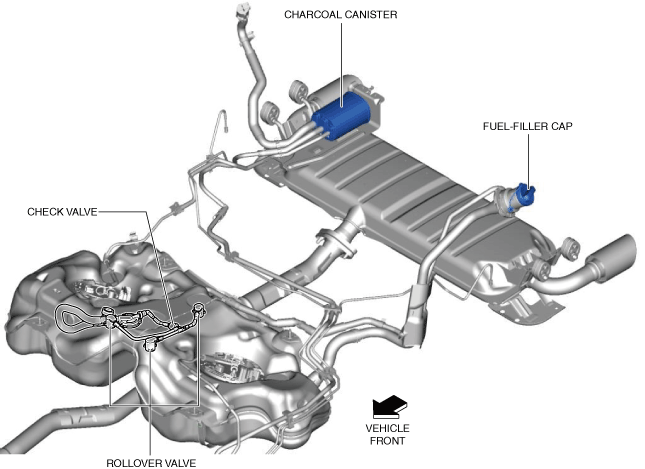

AWD

atsuzn00000800


System Diagram

am3zzn00010344
*1  :Australian, European (L.H.D. U.K.) specs.

Structure

•  The emission system consists of the following parts:

Part/System name

Reference
Exhaust gas purification system
Catalytic converter
(See EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-X 2.0].)
Gasoline particulate filter
Exhaust gas recirculation system
EGR valve
(See EXHAUST GAS RECIRCULATION SYSTEM [SKYACTIV-X 2.0].)
EGR cooler
Exhaust shutter valve*1
Positive crankcase ventilation system
PCV valve
(See POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM [SKYACTIV-X 2.0].)
Check valve
Evaporative emission control system
Purge solenoid valve
(See EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM [SKYACTIV-X 2.0].)
Catch tank
Charcoal canister
Rollover valve
Check valve

*1  :Australian, European (L.H.D. U.K.) specs.
