EMISSION SYSTEM LOCATION INDEX [SKYACTIV-X 2.0]

id0116hf803700

Engine Compartment Side

am3zzw00035731

1	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-X 2.0]) (See PURGE SOLENOID VALVE INSPECTION [SKYACTIV-X 2.0])
2	EGR valve (See EGR VALVE REMOVAL/INSTALLATION [SKYACTIV-X 2.0]) (See EGR VALVE INSPECTION [SKYACTIV-X 2.0])
3	Check valve (intake-air system) (See CHECK VALVE (INTAKE-AIR SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-X 2.0]) (See CHECK VALVE (INTAKE-AIR SYSTEM) INSPECTION [SKYACTIV-X 2.0])
4	Ventilation hose (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-X 2.0 (E)])
5	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-X 2.0 (E)])
6	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION [SKYACTIV-X 2.0]) (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [SKYACTIV-X 2.0])
7	EGR cooler (See EGR COOLER REMOVAL/INSTALLATION [SKYACTIV-X 2.0]) (See EGR COOLER INSPECTION [SKYACTIV-X 2.0])
8	EGR pipe (See EGR PIPE REMOVAL/INSTALLATION [SKYACTIV-X 2.0])
9	Catch tank (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-X 2.0]) (See CATCH TANK INSPECTION [SKYACTIV-X 2.0])

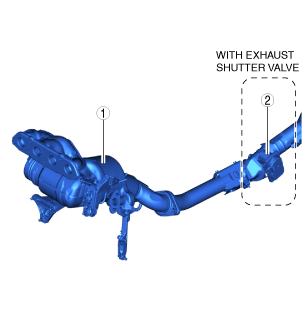

Exhaust System Side

am3zzw00036364

1	Catalytic converter (GPF) (See CATALYTIC CONVERTER (GPF) REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
2	Exhaust shutter valve (With exhaust shutter valve) (See EXHAUST SHUTTER VALVE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See EXHAUST SHUTTER VALVE INSPECTION [SKYACTIV-X 2.0].) (See EXHAUST SHUTTER VALVE ACTUATOR REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

Fuel Tank Side (Except Chinese specs.)

2WD

am3zzw00035245

1	Check valve (See CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See CHECK VALVE INSPECTION [SKYACTIV-X 2.0].)
2	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See ROLLOVER VALVE INSPECTION [SKYACTIV-X 2.0].)
3	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-X 2.0 (E)].)
4	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-X 2.0 (E)])
5	Fuel-filler cap (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)

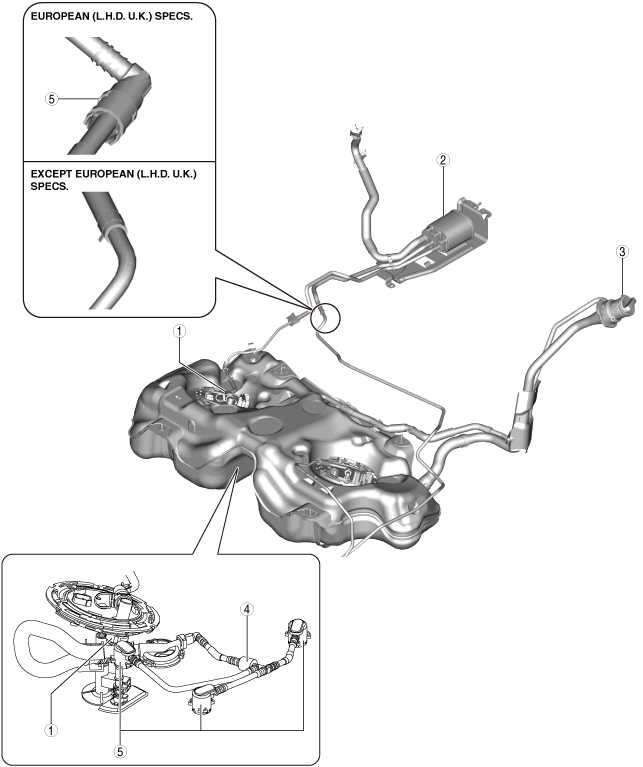

AWD

am3zzw00035246

1	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-X 2.0 (E)])
2	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-X 2.0 (E)].)
3	Fuel-filler cap (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
4	Check valve (See CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See CHECK VALVE INSPECTION [SKYACTIV-X 2.0].)
5	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See ROLLOVER VALVE INSPECTION [SKYACTIV-X 2.0].)

Fuel Tank Side (Chinese specs.)

am3zzw00034740

1	Fuel shut-off valve
2	Quick release connector
3	CV solenoid valve
4	Charcoal canister (sub)
5	Charcoal canister (main)
6	Pressure control valve
7	Rollover valve (Check valve) (See ROLLOVER VALVE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].) (See ROLLOVER VALVE INSPECTION [SKYACTIV-X 2.0].)
8	Fuel-filler cap (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-X 2.0].)
