EMISSION SYSTEM [SKYACTIV-D 1.8]

id0116q9110100


Outline

•  Diesel particulate elimination equipment (Diesel Particulate Filter) has been adopted which eliminates PM from the exhaust gas.
•  By recirculating the exhaust gas after it passes the catalytic converter, load on the turbocharger system is reduced and high environmental performance is achieved.

Structural View

am3zzn00008351

Engine compartment side

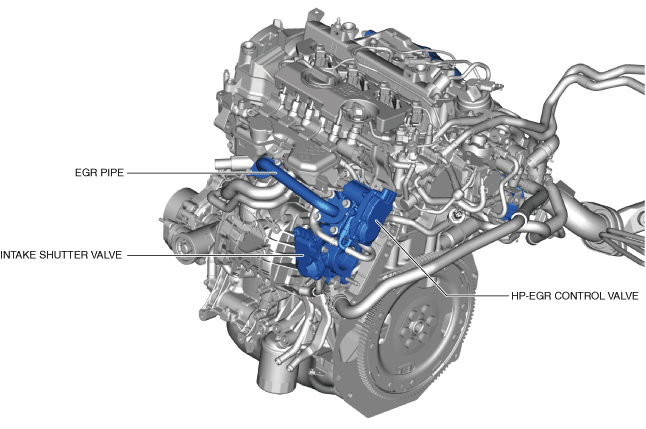

am3zzn00008352

Fuel tank side

am3zzn00008353

Exhaust system side

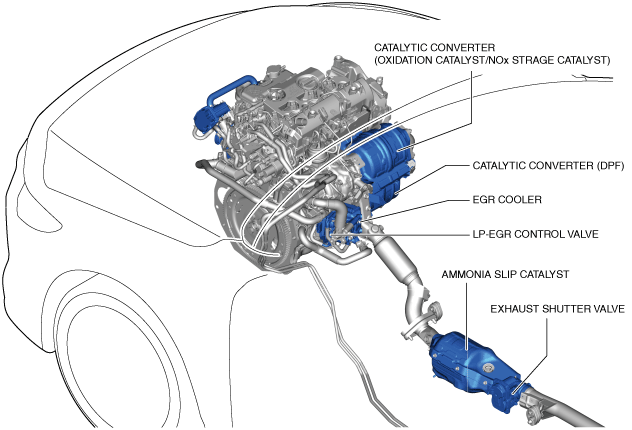

am3zzn00008354

System Diagram

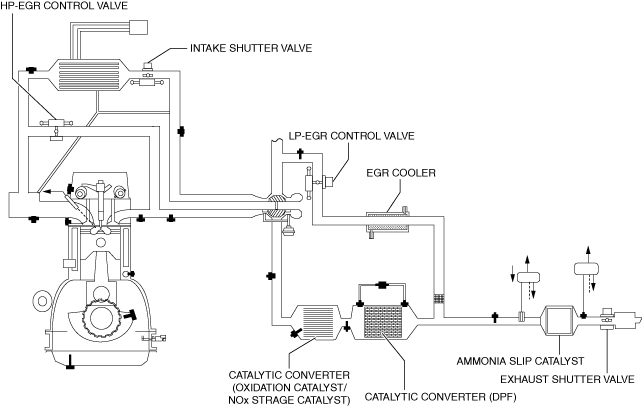

atsuzn00000210

Structure

•  The emission system consists of the following parts:

Part/System name

Reference
Exhaust gas purification system
Catalytic converter
(See EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-D 1.8].)
Diesel particulate filter
Exhaust gas recirculation system
Intake shutter valve
(See EXHAUST GAS RECIRCULATION SYSTEM [SKYACTIV-D 1.8].)
HP-EGR control valve
Exhaust shutter valve
LP-EGR control valve
EGR cooler
―
EGR pipe
―
Fuel-filler cap
―
Rollover valve
―
Check valve
―
Evaporative chamber
(See EVAPORATIVE CHAMBER [SKYACTIV-D 1.8].)
