FRONT WHEEL HUB BOLT REPLACEMENT [(E)]

id0311008002x2

Special service tool (SST)

49 T028 3A0   Ball joint puller set

Replacement part

Warning

•  If the vehicle is driven without ending maintenance mode, it could result in an accident. After performing the maintenance mode work, always end maintenance mode. (With Mazda M Hybrid)

Caution

•  When performing the procedure while the vehicle is on the ground, block the front and rear wheels using wheel blocks. Otherwise, the vehicle may move when the electric parking brake is released. (With Mazda M Hybrid)

1.  Switch to the maintenance mode. (With Mazda M Hybrid) (See MAINTENANCE MODE [(E)].)

2.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

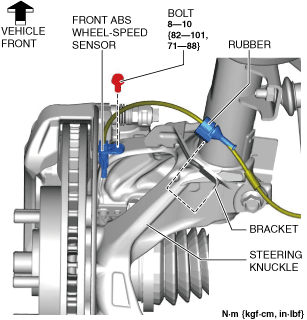

3.  Disconnect the rubber from the bracket.

am3zzw00023066

4.  Disconnect the front ABS wheel-speed sensor wiring harness on the steering knuckle and set it aside so that it does not interfere with the servicing.

5.  Remove the clip from the bracket.

am3zzw00023067

6.  Remove the front brake hose from the bracket.

7.  Remove the front brake caliper component and suspend it in a place out of the way using a cable. (See FRONT BRAKE DISC REMOVAL/INSTALLATION [(E)].)

8.  Remove the front disc plate. (See FRONT BRAKE DISC REMOVAL/INSTALLATION [(E)].)

9.  Remove the front wheel hub bolt using the SST as shown in the figure.

ac5jjw00003203

10.  Pass the new front wheel hub bolt through the wheel hub.

11.  Install the front wheel hub bolt by placing an appropriate-sized washer on the wheel hub and tightening the wheel nut as shown in the figure.

am3uuw00006182

12.  End the maintenance mode. (With Mazda M Hybrid) (See MAINTENANCE MODE [(E)].)
