SHIFT LEVER REMOVAL/INSTALLATION [C66M-R]

id0516c6160900

1.  Disconnect the negative battery terminal.

2.  Remove the following parts.

(1)  Shift lever knob

am3zzw00022738

(2)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(3)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(4)  Cup holder (See CUP HOLDER REMOVAL/INSTALLATION.)

(5)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(6)  Rear console

(7)  Rear console bracket No.1

3.  Disconnect the control cable end from the shift lever. (See CONTROL CABLE REMOVAL/INSTALLATION [C66M-R].)

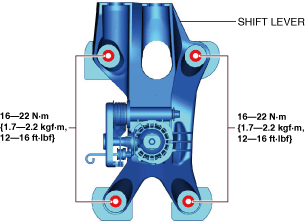

4.  Remove the shift lever.

am3zzw00021684

5.  Install in the reverse order of removal.
