ROAD TEST [CW6A-EL]

id0517l1118400

Warning
•  When performing a road test, always verify the safety of the surrounding area before performing the test.
Note
•  When performing a road test requiring speeds which exceed the legal speed limit, use a dynamometer.

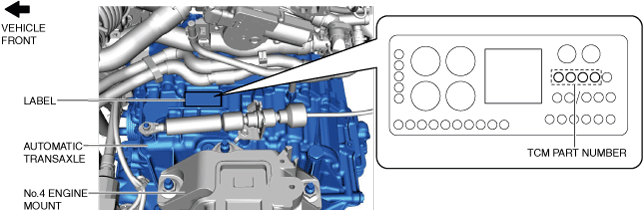

•  The shift point type can be read from the TCM part number on the label shown in the figure.
am3zzw00034721

TCM part number and type (General (R.H.D.))

TCM part number

Type
P5G1
Type A
P5M2
P5M3
Type B


Road Test Preparation

1.  Inspect the engine coolant level. (See ENGINE COOLANT LEVEL INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

2.  Inspect the engine oil level. (See ENGINE OIL LEVEL INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

3.  Inspect the ATF level. (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION [CW6A-EL].)

4.  Inspect the ignition timing. (See ENGINE TUNE-UP [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

5.  Inspect the idle speed. (See ENGINE TUNE-UP [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

6.  Verify that no DTCs are stored.


D Position Test

1.  Perform road test preparations. (See Road Test Preparation.)

2.  Warm up the transaxle.

3.  Select D position.

4.  Inspect the shift point for the D position in normal mode.

•  If there is any malfunction, refer to symptom troubleshooting and verify the malfunction symptom.
(1)  Depress the accelerator pedal and start the vehicle, and verify that the gears shift from 1st to 2nd, 2nd to 3rd, 3rd to 4th, 4th to 5th, and 5th to 6th. In addition, verify that the vehicle speed corresponds to the shift point when shifting.
(2)  Release the accelerator pedal while driving in 6th gear, and verify that the gears shift from 6th to 5th, 5th to 4th, 4th to 3rd, 3rd to 2nd, and 2nd to 1st. In addition, verify that the vehicle speed corresponds to the shift point when shifting.
Note
•  When the accelerator pedal is fully released quickly, shifting is not performed according to the shift pattern because the gear being used may be maintained.
•  When decelerating by strongly depressing the brake pedal, shifting is not performed according to the shift pattern because the shift-down point may be at high vehicle speed.
(3)  Kickdown while driving in 6th, 5th, 4th, 3rd, and 2nd gears, and verify that the gears shift from 6th to 5th, 5th to 4th, 4th to 3rd, 3rd to 2nd, and 2nd to 1st.
(4)  Verify that the shift shock is minimal, shifting is smooth and timely, and there is no abnormal noise or slip.


Shift point

Russian specs.

Position/mode

Accelerator pedal depression amount

Shift

Vehicle speed (km/h {mph})
D
NORMAL
8/8
D1→D2
39—47 {25—29}
D2→D3
69—83 {43—51}
D3→D4
105—127 {65.3—78.9}
D4→D5
138—168 {85.8—104.0}
D5→D6
186—227 {116—141}
25%
(APP)
D1→D2
14—16 {8.7—9.9}
D2→D3
21—24 {13.1—14.9}
D3→D4
29—35 {19—21}
D4→D5
40—47 {25—29}
D5→D6
68—82 {43—50}
0/8
D6→D5
39—47 {25—29}
D5→D4
31—37 {20—22}
D4→D3
23—28 {15—17}
D3→D2
11—12 {6.9—7.4}
D2→D1
5.1—6.1 {3.2—3.7}

European (L.H.D.) specs. (Except Russian)

Position/mode

Accelerator pedal depression amount

Shift

Vehicle speed (km/h {mph})
D
NORMAL
8/8
D1→D2
39—47 {25—29}
D2→D3
69—83 {43—51}
D3→D4
105—127 {65.3—78.9}
D4→D5
138—168 {85.8—104.0}
D5→D6
186—227 {116—141}
25%
(APP)
D1→D2
12—14 {7.5—8.6}
D2→D3
18—20 {11.2—12.4}
D3→D4
26—31 {17—19}
D4→D5
34—41 {22—25}
D5→D6
42—50 {27—31}
0/8
D6→D5
39—47 {25—29}
D5→D4
31—37 {20—22}
D4→D3
23—28 {15—17}
D3→D2
11—12 {6.9—7.4}
D2→D1
5.1—6.1 {3.2—3.7}

TCM part number (Type A), Israel, Saudi specs.

Position/mode

Accelerator pedal depression amount

Shift

Vehicle speed (km/h {mph})
D
NORMAL
8/8
D1→D2
39—47 {25—29}
D2→D3
69—83 {43—51}
D3→D4
105—127 {65.3—78.9}
D4→D5
138—168 {85.8—104.0}
D5→D6
186—227 {116—141}
25%
(APP)
D1→D2
14—16 {8.7—9.9}
D2→D3
24—28 {15—17}
D3→D4
34—40 {22—24}
D4→D5
45—54 {28—33}
D5→D6
74—90 {46—55}
0/8
D6→D5
39—47 {25—29}
D5→D4
31—37 {20—22}
D4→D3
23—28 {15—17}
D3→D2
11—12 {6.9—7.4}
D2→D1
5.1—6.1 {3.2—3.7}

TCM part number (Type B), General (L.H.D.) (Except Israel and Saudi) specs.

Position/mode

Accelerator pedal depression amount

Shift

Vehicle speed (km/h {mph})
D
NORMAL
8/8
D1→D2
39—47 {25—29}
D2→D3
69—83 {43—51}
D3→D4
105—127 {65.3—78.9}
D4→D5
138—168 {85.8—104.0}
D5→D6
186—227 {116—141}
25%
(APP)
D1→D2
14—16 {8.7—9.9}
D2→D3
24—28 {15—17}
D3→D4
34—40 {22—24}
D4→D5
45—54 {28—33}
D5→D6
72—87 {45—54}
0/8
D6→D5
39—47 {25—29}
D5→D4
31—37 {20—22}
D4→D3
23—28 {15—17}
D3→D2
11—12 {6.9—7.4}
D2→D1
5.1—6.1 {3.2—3.7}

Chinese specs.

Position/mode

Accelerator pedal depression amount

Shift

Vehicle speed (km/h {mph})
D
NORMAL
8/8
D1→D2
39—47 {25—29}
D2→D3
69—83 {43—51}
D3→D4
105—127 {65.3—78.9}
D4→D5
138—168 {85.8—104.0}
D5→D6
186—227 {116—141}
25%
(APP)
D1→D2
14—16 {8.7—9.9}
D2→D3
24—28 {15—17}
D3→D4
34—40 {22—24}
D4→D5
45—54 {28—33}
D5→D6
72—87 {45—54}
0/8
D6→D5
39—47 {25—29}
D5→D4
31—37 {20—22}
D4→D3
23—28 {15—17}
D3→D2
11—12 {6.9—7.4}
D2→D1
5.1—6.1 {3.2—3.7}


M Position Test

1.  Perform road test preparations. (See Road Test Preparation.)

2.  Warm up the transaxle.

3.  Select the M position.

4.  Inspect the shift point for the M position.

•  If there is any malfunction, refer to symptom troubleshooting and verify the malfunction symptom.
(1)  Perform the shift operation while driving and verify that the gears can be shifted.
(2)  Release the accelerator pedal while driving in 6th gear, and verify that the gears shift from 6th to 5th, 5th to 4th, 4th to 3rd, 3rd to 2nd, and 2nd to 1st. In addition, verify that the vehicle speed corresponds to the shift point when shifting.
(3)  Release the accelerator pedal while driving and verify that the engine braking operates in all gears.
(4)  Verify that the shift shock is minimal, shifting is smooth and timely, and there is no abnormal noise or slip.


Shift point

Position/mode

Accelerator pedal depression amount

Shift

Vehicle speed (km/h {mph})
M
0/8
M6→M5
39—47 {25—29}
M5→M4
31—37 {20—22}
M4→M3
23—28 {15—17}
M3→M2
11—12 {6.9—7.4}
M2→M1
5.1—6.1 {3.2—3.7}

5.  Inspect 2nd gear fixed mode.

(1)  While the vehicle is stopped or the vehicle speed is 10 km/h {6.2 mph} or less, operate the selector lever toward + to shift to 2nd gear.
(2)  Verify that the gear is fixed in 2nd gear.
(3)  Release the accelerator pedal while driving and verify that the engine braking operates.
(4)  Perform the shift operation while driving and verify that the gears can be shifted.


P Position Test

1.  Park the vehicle on a gentle slope and shift the selector lever to the P position.

2.  Release the brake and verify that the vehicle does not move.

•  If there is any malfunction, inspect the parking mechanism in the transaxle.
